EEC0252B1-000U-G99 SUNON Axial Fan

Brand :: SUNON

Model:: EEC0252B1-000U-G99 | SUNON 24V 5W 120x120x25mm 183.8m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Within telecom cabinets, base stations, and network equipment, SUNON EEC0252B1-000U-G99 serves as a 120 × 120 × 25 mm DC axial fan operating at 24 VDC. Up to 183.8 m³/h is its most prominent listed performance figure. Base noise-control planning on the stated sound level. Confirm environmental protection for the ordered version.

Datasheet:: EEC0252B1-000U-G99 | SUNON 24V 5W 120x120x25mm 183.8m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120x120x25
Max.Air Flow(m³/h)	183.8
Max.Pressure(Pa)	69.7
Input Power(W)	5
Speed(rpm)	3100
Noise(db)	44.5

Product Features

Reliable Fan Cooling

For industrial equipment, SUNON EEC0252B1-000U-G99 serves as a DC brushless axial fan. The fan supports temperature control in equipment that runs through sustained or repeated duty cycles.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. A smooth inlet and outlet transition reduces avoidable turbulence, helping preserve useful cooling capacity and manage installed sound.

For EEC0252B1-000U-G99 integration, prioritize inlet clearance. Include replacement-fit checks in engineering approval, and confirm the full model interface in equipment qualification. This supports reliable cooling and traceable purchasing. Verify mounting, connector and airflow direction against the replacement space.

Application Industry

Industrial Equipment

SUNON EEC0252B1-000U-G99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Why choose EEC0252B1-000U-G99 over a general cooling fan?

Its documented 24 VDC rating and up to 183.8 m³/h is its most prominent listed performance figure. allow comparison with the required duty point without assuming unlisted options.

What noise data are available for EEC0252B1-000U-G99?

The worksheet lists 44.5 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What airflow value is listed for EEC0252B1-000U-G99?

The worksheet lists up to 183.8 m³/h. Verify the operating point against system resistance.

What installation checks apply to EEC0252B1-000U-G99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

How should EEC0252B1-000U-G99 be matched to an enclosure?

Review its 120 × 120 × 25 mm size, 183.8 m³/h airflow, 69.7 Pa pressure, system resistance, and available mounting space.

Can EEC0252B1-000U-G99 serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

Related Products

EEC0382B-1000U-G99 | SUNON 24V 9.2W 120x120x38mm 234.5m3/h DC Axial Fan for Industrial Cooling

Within telecom cabinets, base stations, and network equipment, SUNON EEC0382B-1000U-G99 serves as a 120 × 120 × 38 mm DC blower operating at 24 VDC. Up to 234.5 m³/h is its most prominent listed performance figure. The recorded rated dataset should guide noise-control planning. Confirm environmental protection for the ordered version.

EEC0382B1-000U-G99 | SUNON 24V 9.2W 120x120x38mm 3100rpm DC Axial Fan for Industrial Cooling

Within telecom cabinets, base stations, and network equipment, SUNON EEC0382B1-000U-G99 serves as a 120 × 120 × 38 mm DC blower operating at 24 VDC. 9.2 W input is the defining electrical load in the supplied data. During noise-control planning, compare the model's thermal-duty record. Confirm environmental protection for the ordered version.

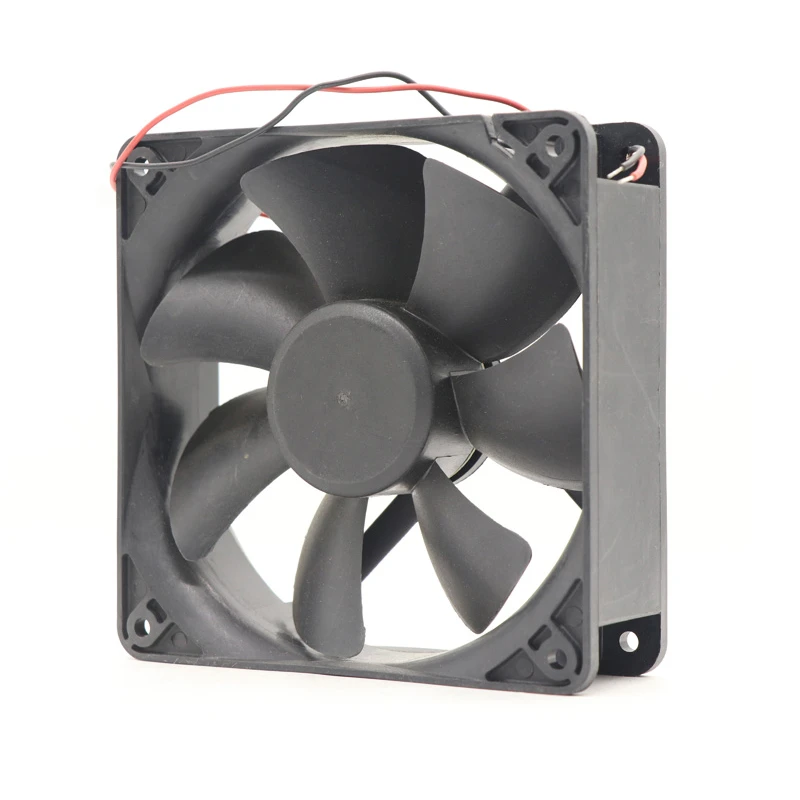

EEC0381B1-000U-G99 | SUNON 12V 10W 120x120x38mm 234.09m3/h DC Axial Fan for Industrial Cooling

The 12 VDC SUNON EEC0381B1-000U-G99 is a DC blower sized 120 × 120 × 38 mm for telecom cabinets, base stations, and network equipment. Up to 234.09 m³/h is its most prominent listed performance figure. Base wiring review on the stated supply requirement. Confirm environmental protection for the ordered version.

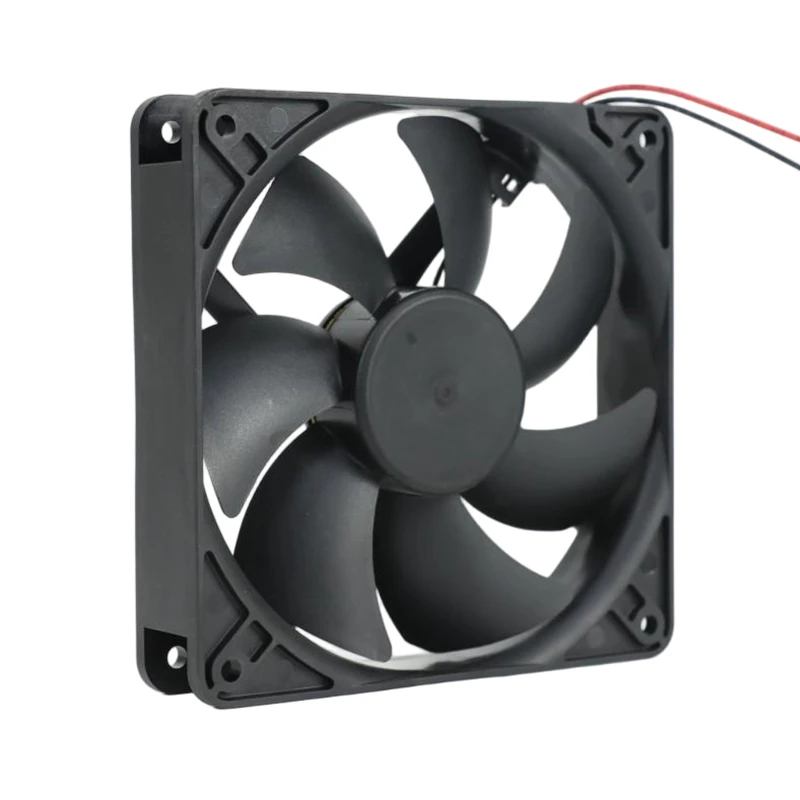

EEC0251B2-000U-G99 | SUNON 12V 3.4W 120x120x25mm 2700rpm DC Axial Fan for Industrial Cooling

The EEC0251B2-000U-G99 is SUNON's 12 VDC, 120 × 120 × 25 mm DC axial fan option for telecom cabinets, base stations, and network equipment. Its 2700 rpm rating defines a lower-speed operating point. For airflow-path design, start with the supplied volume-flow figure. Obtain the applicable curve before final duty-point approval.

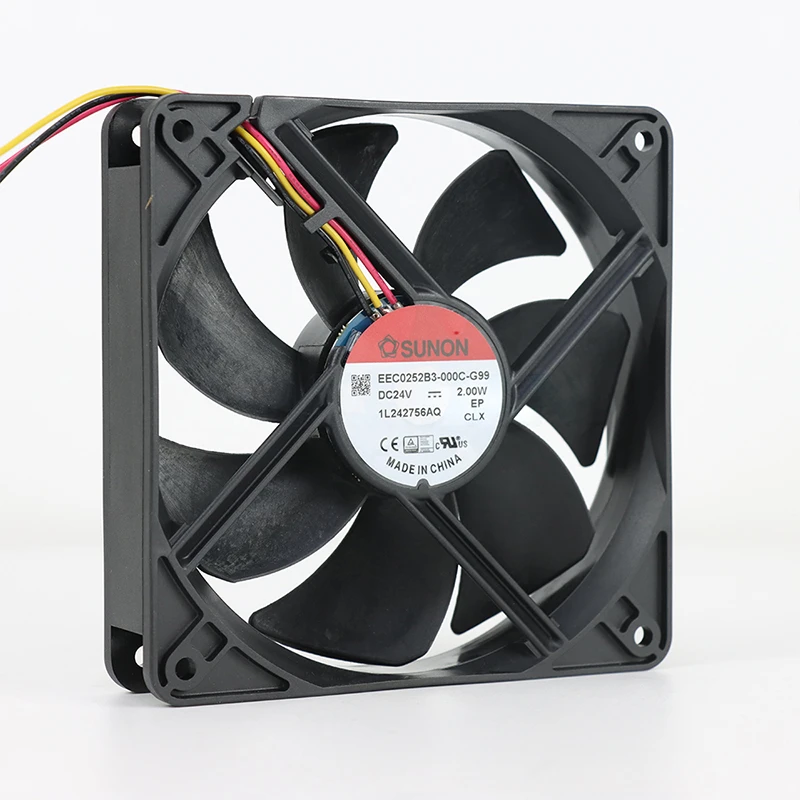

EEC0252B3-000U-G99 | SUNON 24V 2W 120x120x25mm 75m3/h DC Axial Fan for Industrial Cooling

Specified at 24 VDC, EEC0252B3-000U-G99 is a SUNON DC axial fan for telecom cabinets, base stations, and network equipment in 120 × 120 × 25 mm dimensions. Its 2200 rpm rating defines a lower-speed operating point. The recorded application data should guide acoustic assessment. Match the exact part number before approving a substitute.

EEC0251B2-0000-A99 | SUNON 12V 3.4W 120x120x25mm DC Axial Fan for Refrigeration Equipment

SUNON EEC0251B2-0000-A99 combines a 120 × 120 × 25 mm DC axial fan platform with a 12 VDC rating for telecom cabinets, base stations, and network equipment. Its 2700 rpm rating defines a lower-speed operating point. Base noise-control planning on the stated installation footprint. Confirm environmental protection for the ordered version.
