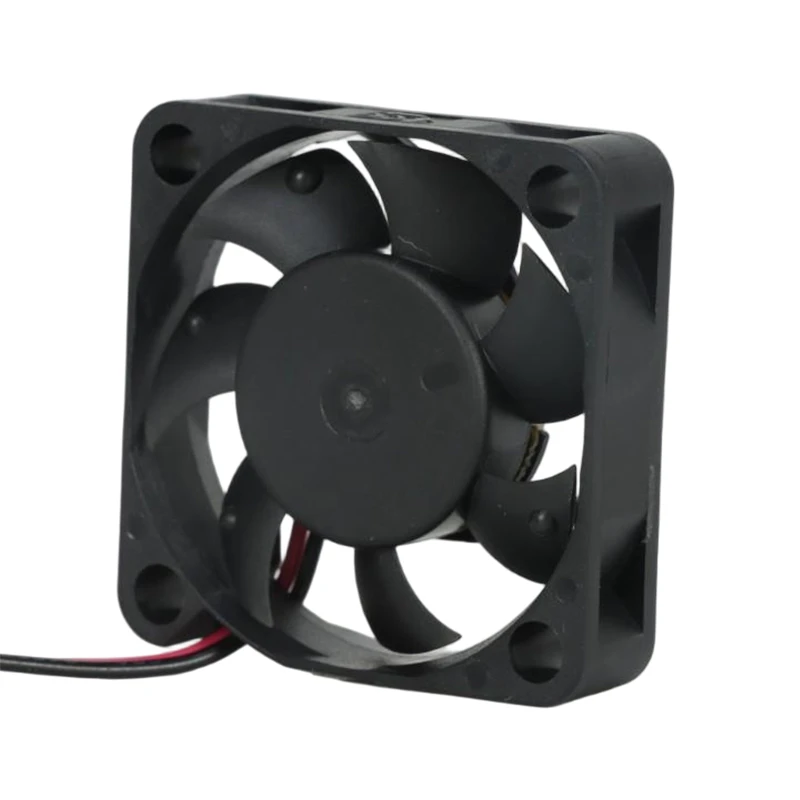

EF40101B1-1D070-AB9 SUNON Axial Fan

Brand :: SUNON

Model:: EF40101B1-1D070-AB9 | SUNON 12V 0.99W 40x40x10mm 13.6m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON EF40101B1-1D070-AB9 is a 12 VDC DC axial fan in a 40 × 40 × 10 mm format for telecom cabinets, base stations, and network equipment. Its 13.6 m³/h airflow rating suits the stated equipment-cooling role. The recorded motor input should guide mounting verification. Validate mounting and wiring from the model drawing.

Datasheet:: EF40101B1-1D070-AB9 | SUNON 12V 0.99W 40x40x10mm 13.6m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	40x40x10mm
Max.Air Flow(m³/h)	13.6
Max.Pressure(Pa)	47.3
Input Power(W)	0.99
Speed(rpm)	7000
Noise(db)	27.3

Product Features

Reliable Fan Cooling

SUNON EF40101B1-1D070-AB9 brings active air movement to industrial equipment. This DC brushless axial fan helps equipment designers control thermal conditions around densely arranged parts.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. The enclosure should direct air across the heat source because bypass flow can reduce cooling even when the fan runs normally.

For EF40101B1-1D070-AB9 integration, prioritize inlet clearance. Include system-resistance review in engineering approval, and confirm the full model interface during prototype approval. This supports reliable cooling and traceable purchasing. Keep the intake free from nearby walls or bundled wiring.

Application Industry

Industrial Equipment

SUNON EF40101B1-1D070-AB9 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What noise data are available for EF40101B1-1D070-AB9?

The worksheet lists 27.3 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

Is EF40101B1-1D070-AB9 suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

Does EF40101B1-1D070-AB9 have a documented pressure rating?

Yes. The worksheet lists up to 47.3 Pa; compare it with the system curve.

What input power is listed for EF40101B1-1D070-AB9?

The worksheet lists 0.99 W input. Check supply capacity and operating conditions before commissioning.

What equipment can use EF40101B1-1D070-AB9?

It is listed for telecom cabinets, base stations, and network equipment. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.
