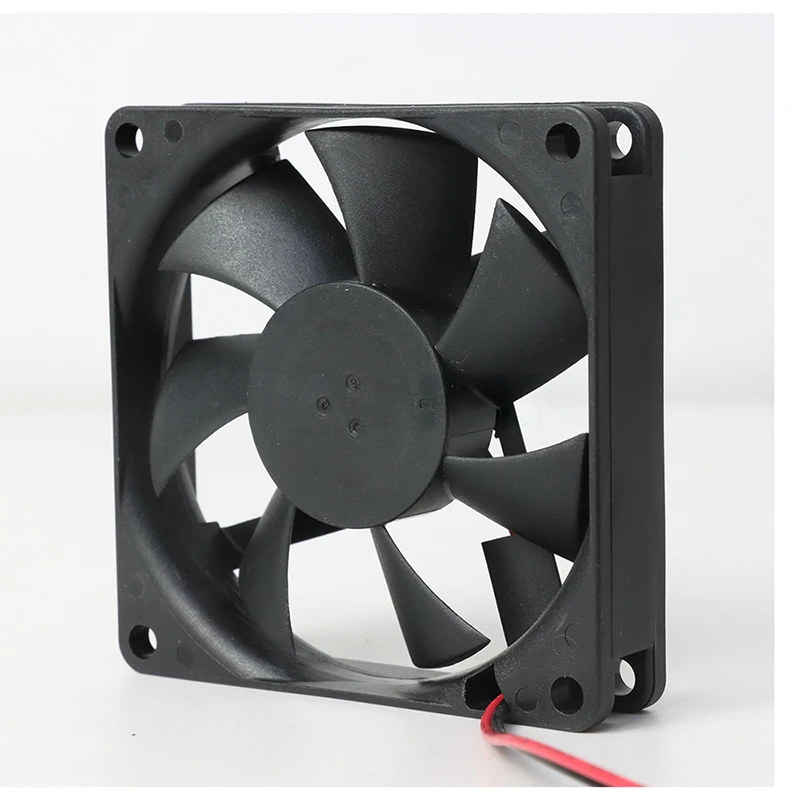

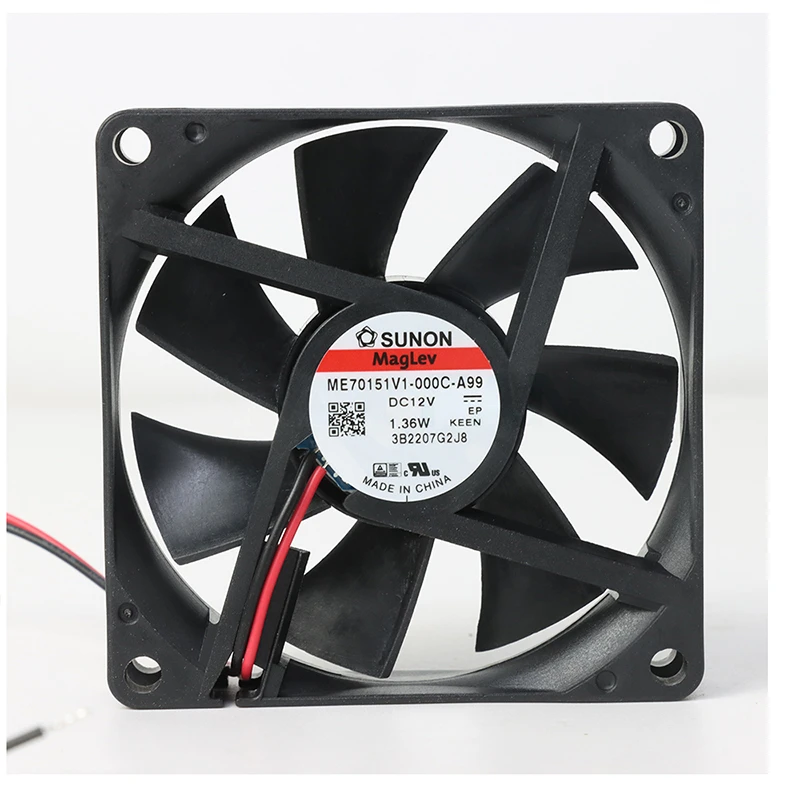

ME70151V1-000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: ME70151V1-000U-A99 | SUNON 12V 1.36W 70x70x15mm 27m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON ME70151V1-000U-A99 combines a 70 × 70 × 15 mm DC blower platform with a 12 VDC rating for industrial electronics and equipment cooling. Its 27 m³/h airflow rating suits the stated equipment-cooling role. The recorded cooling output should guide system-resistance review. Use current model documentation to validate protection choices.

Datasheet:: ME70151V1-000U-A99 | SUNON 12V 1.36W 70x70x15mm 27m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	707015
Max.Air Flow(m³/h)	27
Input Power(W)	1.36
Speed(rpm)	3300
Noise(db)	31.5

Product Features

MagLev Cooling

Designed for industrial equipment, the SUNON ME70151V1-000U-A99 provides DC brushless axial fan cooling in a format suited to equipment integration. It helps limit local heat buildup during operation.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Separating cool intake air from warm exhaust limits recirculation and improves heat-transfer effectiveness inside the equipment.

When qualifying ME70151V1-000U-A99, give specific attention to service access. Use prototype trials before release to align enclosure cooling, mechanical integration and lifecycle sourcing expectations. Use a representative assembly rather than an unrestricted bench setup.

Application Industry

Industrial Equipment

SUNON ME70151V1-000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What airflow value is listed for ME70151V1-000U-A99?

The worksheet lists up to 27 m³/h. Verify the operating point against system resistance.

What bearing information is confirmed for ME70151V1-000U-A99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should ME70151V1-000U-A99 be matched to an enclosure?

Review its 70 × 70 × 15 mm size, 27 m³/h airflow, system resistance, and available mounting space.

What equipment can use ME70151V1-000U-A99?

It is listed for industrial electronics and equipment cooling. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

How is ME70151V1-000U-A99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for ME70151V1-000U-A99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.
