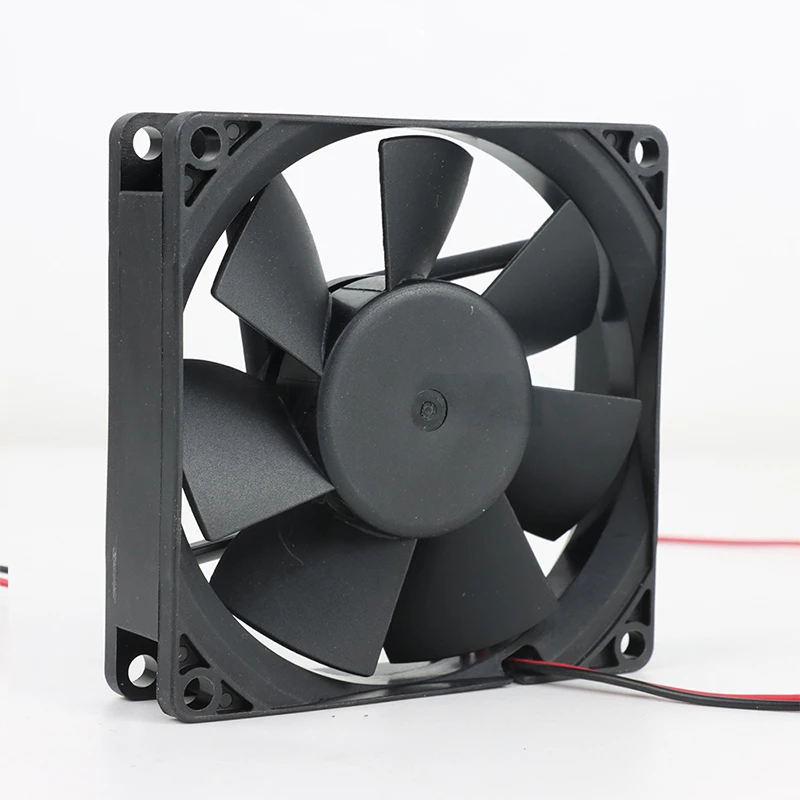

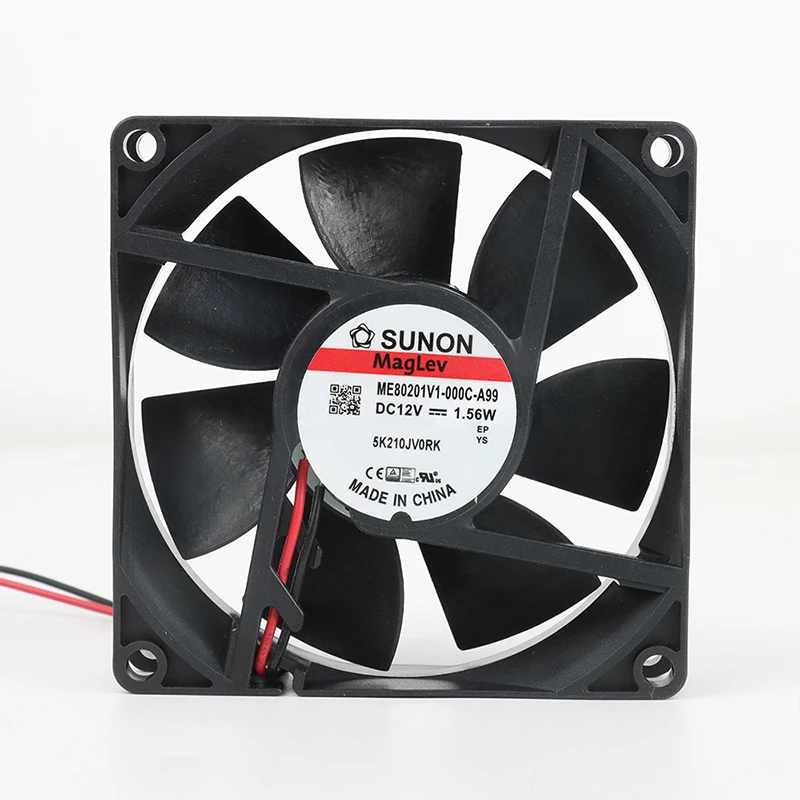

ME80201V1-000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: ME80201V1-000U-A99 | SUNON 12V 1.56W 80x80x20mm 36m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The ME80201V1-000U-A99 is SUNON's 12 VDC, 80 × 80 × 20 mm DC blower option for industrial electronics and equipment cooling. Its 3300 rpm rating defines a lower-speed operating point. Treat the acoustic value as a primary input to system-resistance review. Use current model documentation to validate protection choices.

Datasheet:: ME80201V1-000U-A99 | SUNON 12V 1.56W 80x80x20mm 36m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	808020
Max.Air Flow(m³/h)	36
Input Power(W)	1.56
Speed(rpm)	3300

Product Features

MagLev Cooling

Equipment builders can integrate SUNON ME80201V1-000U-A99, a DC brushless axial fan, into industrial equipment. The design supplies the air movement required to carry component heat out of confined spaces.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Separating cool intake air from warm exhaust limits recirculation and improves heat-transfer effectiveness inside the equipment.

ME80201V1-000U-A99 is best integrated with attention to grille resistance. Engineering teams can use prototype trials before release to verify thermal suitability and give buyers an auditable selection basis. Use a representative assembly rather than an unrestricted bench setup.

Application Industry

Industrial Equipment

SUNON ME80201V1-000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What maintenance is recommended for ME80201V1-000U-A99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Why choose ME80201V1-000U-A99 over a general cooling fan?

Its documented 12 VDC rating and its 3300 rpm rating defines a lower-speed operating point. allow comparison with the required duty point without assuming unlisted options.

What speed is listed for ME80201V1-000U-A99?

The listed speed is 3300 rpm. Confirm frequency, control method, and duty point for the installed system.

What airflow value is listed for ME80201V1-000U-A99?

The worksheet lists up to 36 m³/h. Verify the operating point against system resistance.

What installation checks apply to ME80201V1-000U-A99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Which performance figures define ME80201V1-000U-A99?

Use the listed voltage, size, 36 m³/h airflow, 3300 rpm, and 1.56 W input for preliminary comparison.
