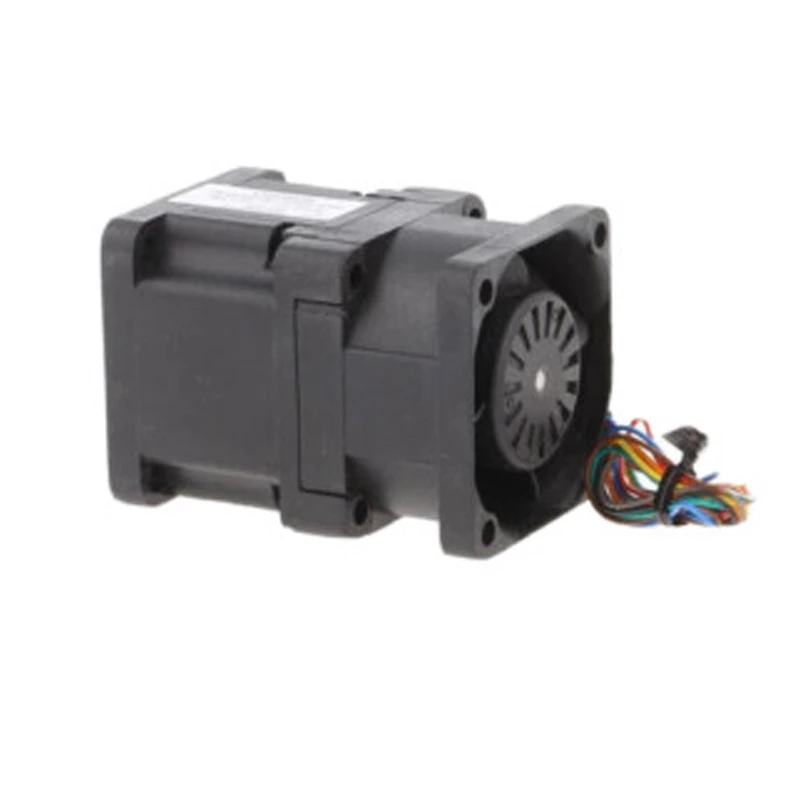

PF40561BX-10000-S9H SUNON Axial Fan

Brand :: SUNON

Model:: PF40561BX-10000-S9H | SUNON 12V 16.68W 40x40x56mm 31.7m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Specified at 12 VDC, PF40561BX-10000-S9H is a SUNON DC axial fan for servers and data-center electronics in 40 × 40 × 56 mm dimensions. 3.76 Pa maximum pressure is the standout documented duty-point value. Treat the rotational rating as a primary input to application screening. Validate approvals and protection at complete-part-number level.

Datasheet:: PF40561BX-10000-S9H | SUNON 12V 16.68W 40x40x56mm 31.7m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	40x40x56
Max.Air Flow(m³/h)	31.7
Max.Pressure(Pa)	3.76
Input Power(W)	16.68
Speed(rpm)	21500/18000
Noise(db)	65.9

Product Features

Reliable Fan Cooling

SUNON PF40561BX-10000-S9H is a DC brushless axial fan for industrial equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. The enclosure should direct air across the heat source because bypass flow can reduce cooling even when the fan runs normally.

To integrate PF40561BX-10000-S9H effectively, review outlet geometry at equipment level and arrange acoustic evaluation for service documentation. Confirmed system compatibility supports stable cooling and repeatable procurement. Preserve a clear discharge region to avoid unnecessary downstream turbulence.

Application Industry

Industrial Equipment

SUNON PF40561BX-10000-S9H serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What input power is listed for PF40561BX-10000-S9H?

The worksheet lists 16.68 W input. Check supply capacity and operating conditions before commissioning.

What equipment can use PF40561BX-10000-S9H?

It is listed for servers and data-center electronics. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

What protection rating does PF40561BX-10000-S9H have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

Is PF40561BX-10000-S9H compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

How should buyers confirm availability of PF40561BX-10000-S9H?

Stock and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.
