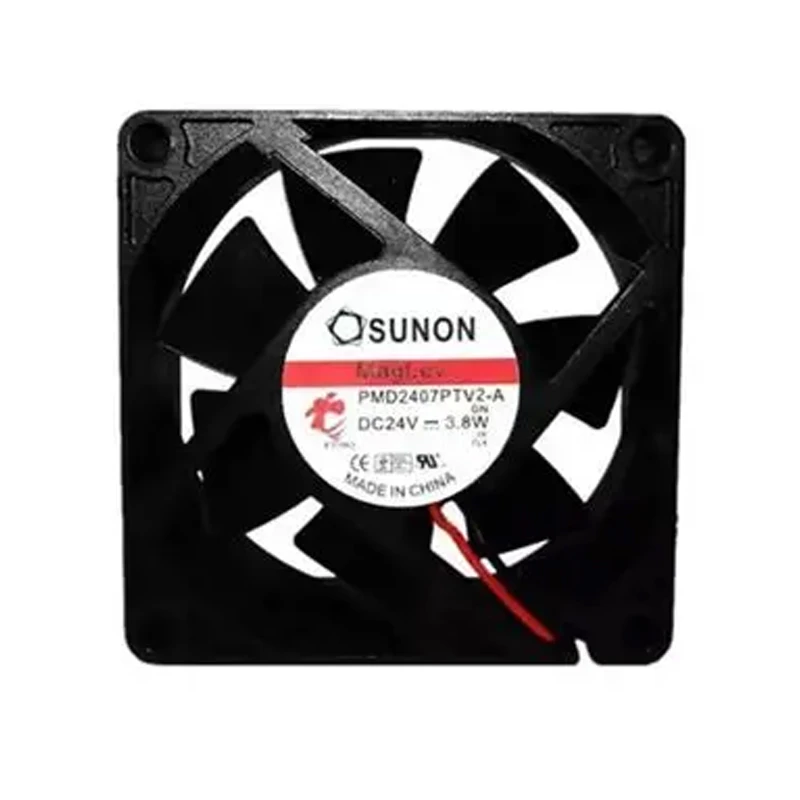

PMD2407PTV2-A SUNON Axial Fan

Brand :: SUNON

Model:: PMD2407PTV2-A | SUNON 24V 3.8W 70x70x25mm 76.5m3/h 4700rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Used in industrial electronics and equipment cooling, SUNON PMD2407PTV2-A is a 24 VDC DC axial fan in a 70 × 70 × 25 mm frame. 3.8 W input is the defining electrical load in the supplied data. For engineering comparison, start with the supplied model record. Confirm temperature and service-life limits from current data.

Datasheet:: PMD2407PTV2-A | SUNON 24V 3.8W 70x70x25mm 76.5m3/h 4700rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	70x70x25mm
Max.Air Flow(m³/h)	76.5
Max.Pressure(Pa)	77.2
Input Power(W)	3.8
Speed(rpm)	4700
Noise(db)	42

Product Features

MagLev Cooling

The SUNON PMD2407PTV2-A positions a DC brushless axial fan for industrial equipment. Its airflow path supports heat removal from enclosed components and toward the equipment exhaust.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

The final PMD2407PTV2-A selection should consider connector reach as part of the installation layout. Finishing system-resistance review before volume production helps reduce integration uncertainty and supports reliable equipment cooling. Confirm that the mating lead reaches without tension or sharp bending.

Application Industry

Industrial Equipment

SUNON PMD2407PTV2-A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Does PMD2407PTV2-A have a documented pressure rating?

Yes. The worksheet lists up to 77.2 Pa; compare it with the system curve.

Which performance figures define PMD2407PTV2-A?

Use the listed voltage, size, 76.5 m³/h airflow, 4700 rpm, and 3.8 W input for preliminary comparison.

What certification information is listed for PMD2407PTV2-A?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is PMD2407PTV2-A electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

Does PMD2407PTV2-A support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.
