109-210 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109-210 | Sanyo Denki 100VAC 6/5W San Ace AC Axial Fan for industrial fan cooling systems

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The 80 × 80 × 20 mm Sanyo Denki 109-210 brings 100 VAC AC axial fan cooling to industrial equipment cooling. Series options require suffix verification. The recorded cooling specification should guide system-resistance review. Confirm control inputs against the complete ordering code. Focus: power budget review suffix definition.

Datasheet:: 109-210 | Sanyo Denki 100VAC 6/5W San Ace AC Axial Fan for industrial fan cooling systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	100
Size(mm)	808020
Max.Air Flow(m³/h)	26.4/31.8
Max.Pressure(Pa)	23.5/31.4
Input Power(W)	6/5
Speed(rpm)	2500/3000
Noise(db)	26/31

Product Features

Reliable Fan Cooling

SANYO DENKI positions 109-210 as a AC axial fan for industrial machinery and electrical enclosures. It helps equipment designers manage local hot spots where natural convection is insufficient.

The rated peak airflow of 26.4/31.8 m3/h combines with 23.5/31.4 Pa pressure capability to support useful flow after installation losses are considered. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Include filter loading in the airflow margin. It supports a clear fan specification for future servicing. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Industrial Equipment

For industrial machinery and embedded electronics, 109-210 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Power Cabinets

SANYO DENKI 109-210 serves power distribution and electrical enclosures that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Is 109-210 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 109-210 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 109-210 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Can 109-210 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 109-210?

The worksheet lists 26/31 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

Related Products

109-043UL | Sanyo Denki 115VAC 9W AC Axial Fan for automation and control cabinet cooling

The 109-043UL is a Sanyo Denki 115 VAC, 80 × 80 × 42 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. Review its mounting size during power-budget planning. Confirm control inputs against the complete ordering code. Focus: service access planning ventilation capacity.

109S051 | Sanyo Denki 200VAC 9/7W AC Axial Fan for automation and control cabinet cooling

The 109S051 is a Sanyo Denki 200 VAC, 80 × 80 × 25 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. For compatibility checking, start with the supplied pressure capability. Review connector, alarm, and sensor options separately. Focus: service access planning installation footprint.

109P0412H701 | Sanyo Denki 12VDC 1.56W DC Axial Fan for UPS, server and telecom equipment cooling

109P0412H701 addresses servers, UPS systems, and telecom equipment through a 12 VDC DC axial fan platform measuring 40 × 40 × 15 mm. Series focus: high airflow and pressure. The 11 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking acoustic value. Focus: compatibility risk checking acoustic value.

109P0612K701 | Sanyo Denki 12VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

For servers, UPS systems, and telecom equipment, 109P0612K701 combines 12 VDC operation with a 60 × 60 × 15 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The 36.8 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking airflow profile.

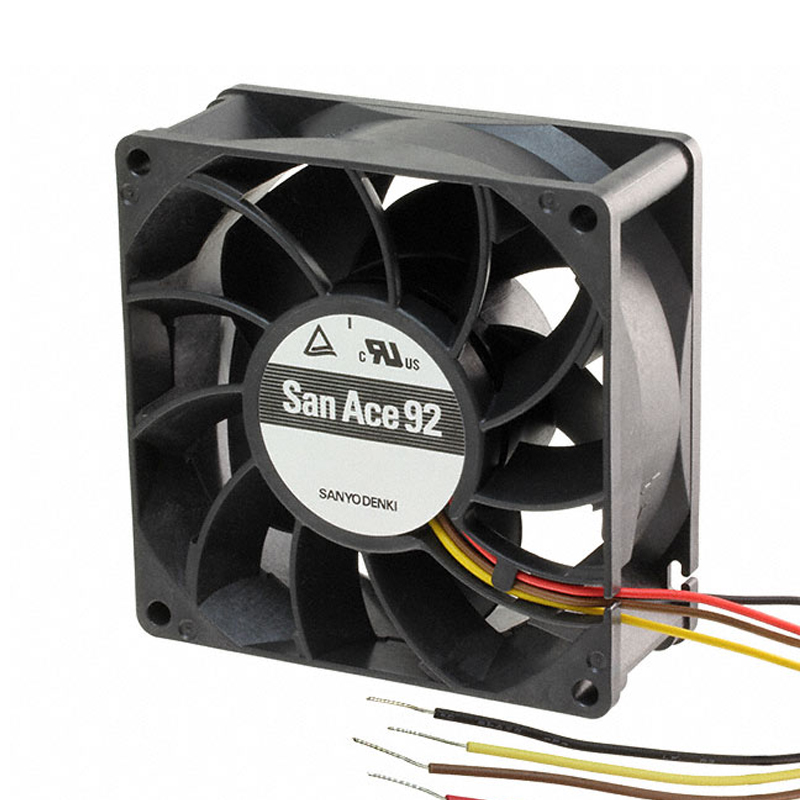

9GV0912P1F03 | Sanyo Denki 12VDC 22.8W DC Axial Fan for automation and control cabinet cooling
