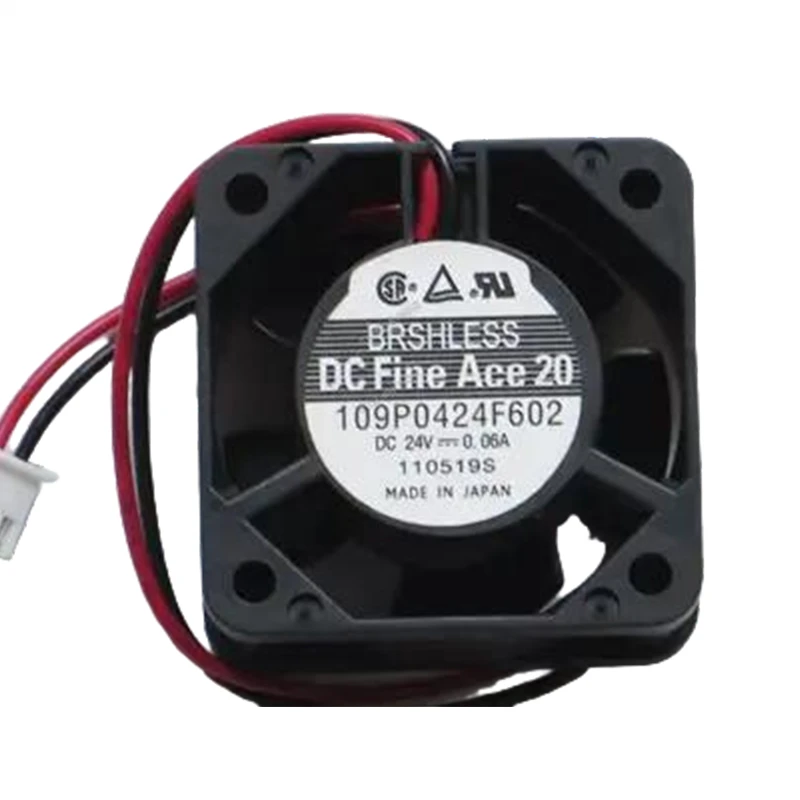

109P0424F602 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424F602 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109P0424F602 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 40 × 40 × 20 mm dimensions. The 10.9 m³/h airflow figure supports its stated equipment-cooling role. Review its airflow profile during airflow-path design. Obtain the applicable curve before final duty-point approval.

Datasheet:: 109P0424F602 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020
Max.Air Flow(m³/h)	10.9
Max.Pressure(Pa)	45.1
Input Power(W)	1.44
Speed(rpm)	6500
Noise(db)	28

Product Features

High Airflow Design

109P0424F602 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

With up to 10.9 m3/h airflow and 45.1 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Include filter loading in the airflow margin. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0424F602 supports thermal management in server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Storage Systems

For storage arrays and data appliances, 109P0424F602 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

ICT Equipment

SANYO DENKI 109P0424F602 serves network and other ICT hardware that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What equipment is 109P0424F602 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109P0424F602 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 109P0424F602 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Why choose 109P0424F602 instead of a standard fan?

Its 24 VDC rating and documented the 10.9 m³/h airflow figure supports its stated equipment-cooling role. provide model-specific selection data without relying on unlisted claims.

How noisy is 109P0424F602?

The worksheet lists 28 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What speed is listed for 109P0424F602?

The listed speed is 6500 rpm. Confirm control conditions and the actual duty point.
