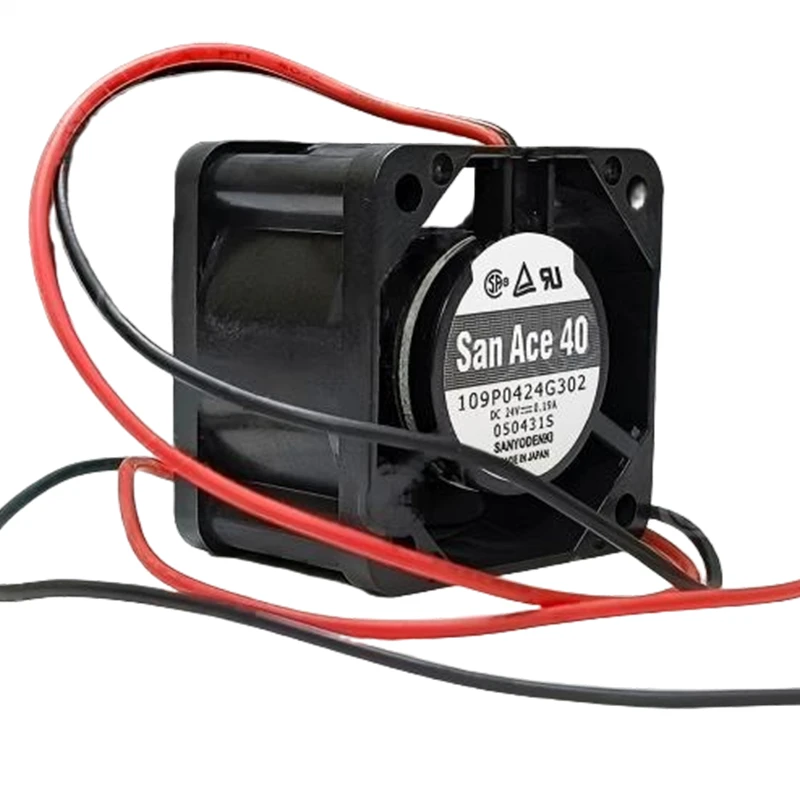

109P0424G302 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424G302 | Sanyo Denki 24VDC 4.56W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 24 VDC Sanyo Denki 109P0424G302 is a DC axial fan sized 40 × 40 × 28 mm for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 25.16 m³/h airflow figure supports its stated equipment-cooling role. Check control interface planning rated dataset.

Datasheet:: 109P0424G302 | Sanyo Denki 24VDC 4.56W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404028
Max.Air Flow(m³/h)	25.16
Input Power(W)	4.56
Speed(rpm)	11500
Noise(db)	42

Product Features

Reliable Fan Cooling

109P0424G302 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

The specified maximum airflow of 25.16 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Measure installed sound in the final cabinet. It gives integrators a practical acceptance criterion. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

For server chassis and computing nodes, 109P0424G302 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

SANYO DENKI 109P0424G302 serves storage arrays and data appliances that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

109P0424G302 is suitable for network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Frequently Asked Questions

Is 109P0424G302 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 109P0424G302?

Use rated voltage, 40 × 40 × 28 mm dimensions, 25.16 m³/h airflow, 11500 rpm, and 4.56 W input for preliminary comparison.

What certifications apply to 109P0424G302?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 109P0424G302?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

Does 109P0424G302 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.
