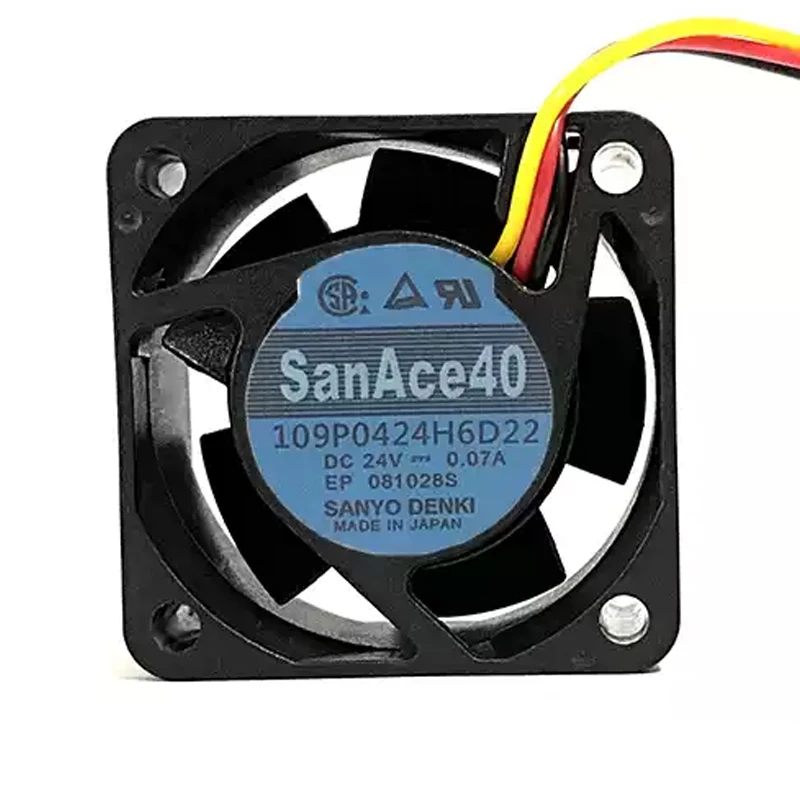

109P0424H6D22 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424H6D22 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 24 VDC Sanyo Denki 109P0424H6D22 is a DC axial fan sized 40 × 40 × 20 mm for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 40 × 40 × 20 mm format is the primary stated selection detail. Check thermal margin assessment volume-flow figure.

Datasheet:: 109P0424H6D22 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020

Product Features

Efficient Cooling

SANYO DENKI positions 109P0424H6D22 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Test component temperatures at peak load. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0424H6D22 supports thermal management in server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109P0424H6D22 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109P0424H6D22 serves network and other ICT hardware that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Frequently Asked Questions

What airflow is listed for 109P0424H6D22?

No airflow value is supplied for this row; obtain the official curve before selection.

Can 109P0424H6D22 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 109P0424H6D22 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 109P0424H6D22 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

What bearing type does 109P0424H6D22 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 109P0424H6D22 be matched to an enclosure?

Check its 40 × 40 × 20 mm size, mounting points, airflow direction, and system resistance.
