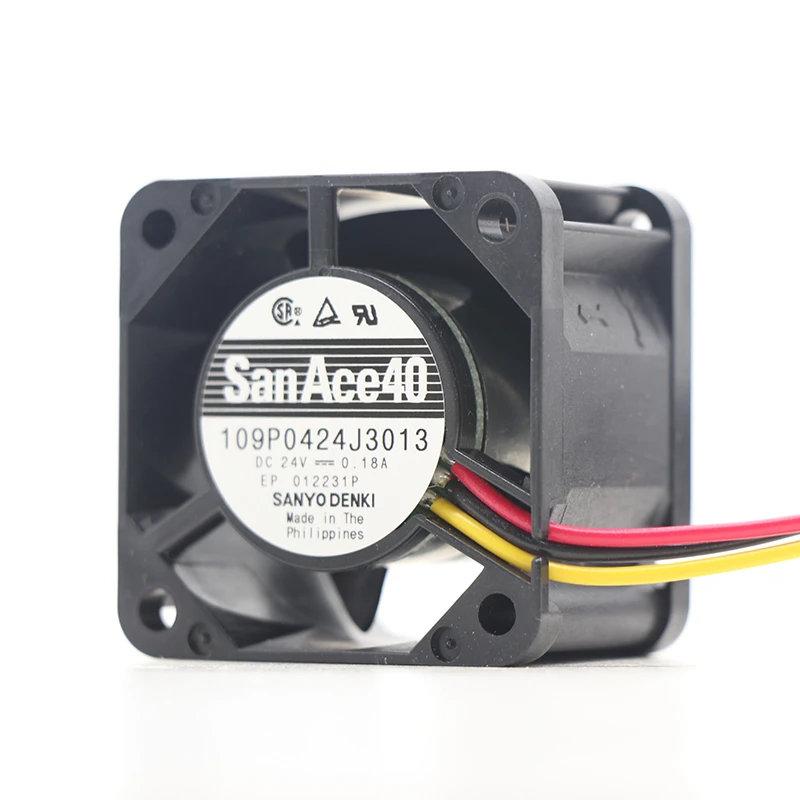

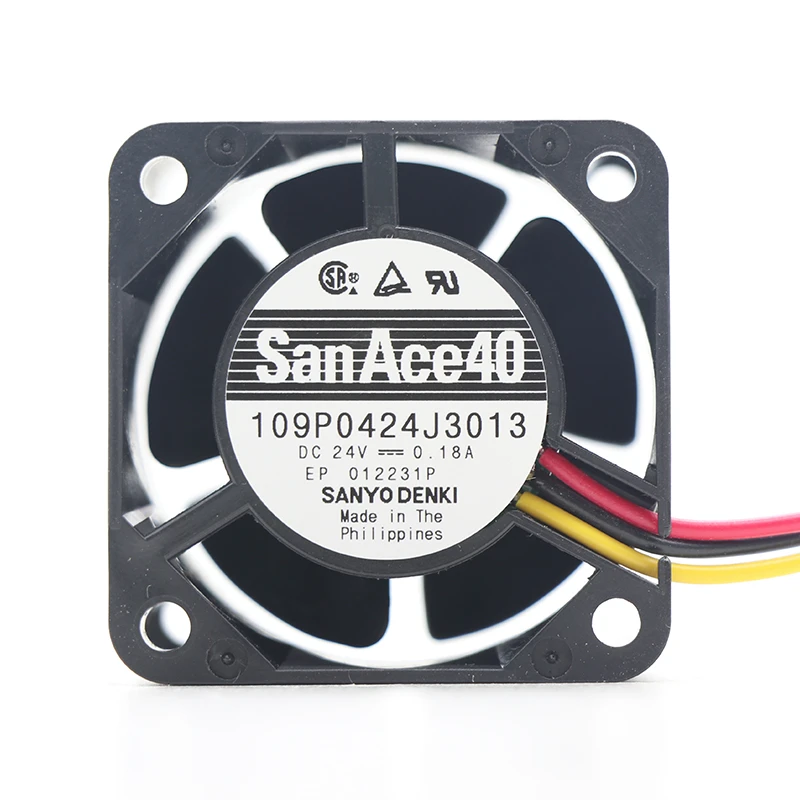

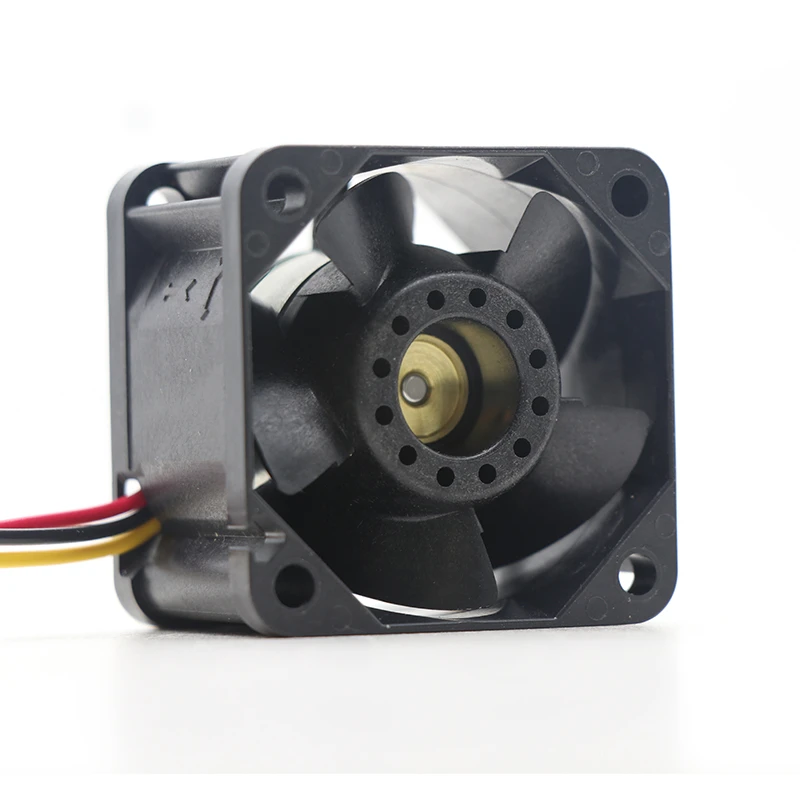

109P0424J3013 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0424J3013 | Sanyo Denki 24VDC 4.32W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0424J3013 is a 24 VDC DC axial fan in a 40 × 40 × 28 mm format for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. 12500 rpm is the model's most prominent operating value. Check procurement data comparison mounting size. Focus: procurement data comparison mounting size.

Product Features

Rated Voltage(V)	24
Size(mm)	404028
Max.Air Flow(m³/h)	28
Max.Pressure(Pa)	210
Input Power(W)	4.32
Speed(rpm)	12500
Noise(db)	44

Product Features

High Airflow Design

For servers, storage systems and ICT equipment, the SANYO DENKI 109P0424J3013 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

With up to 28 m3/h airflow and 210 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Confirm inlet clearance around nearby cables. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0424J3013 supports thermal management in server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Storage Systems

For storage arrays and data appliances, 109P0424J3013 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

ICT Equipment

SANYO DENKI 109P0424J3013 serves network and other ICT hardware that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Frequently Asked Questions

What speed is listed for 109P0424J3013?

The listed speed is 12500 rpm. Confirm control conditions and the actual duty point.

Is 109P0424J3013 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Does 109P0424J3013 have a pressure rating?

The worksheet lists 210 Pa. Use the official curve to match it to system resistance.

What certifications apply to 109P0424J3013?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109P0424J3013 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What airflow is listed for 109P0424J3013?

The worksheet lists 28 m³/h. Compare the operating point with system resistance and the official performance curve.
