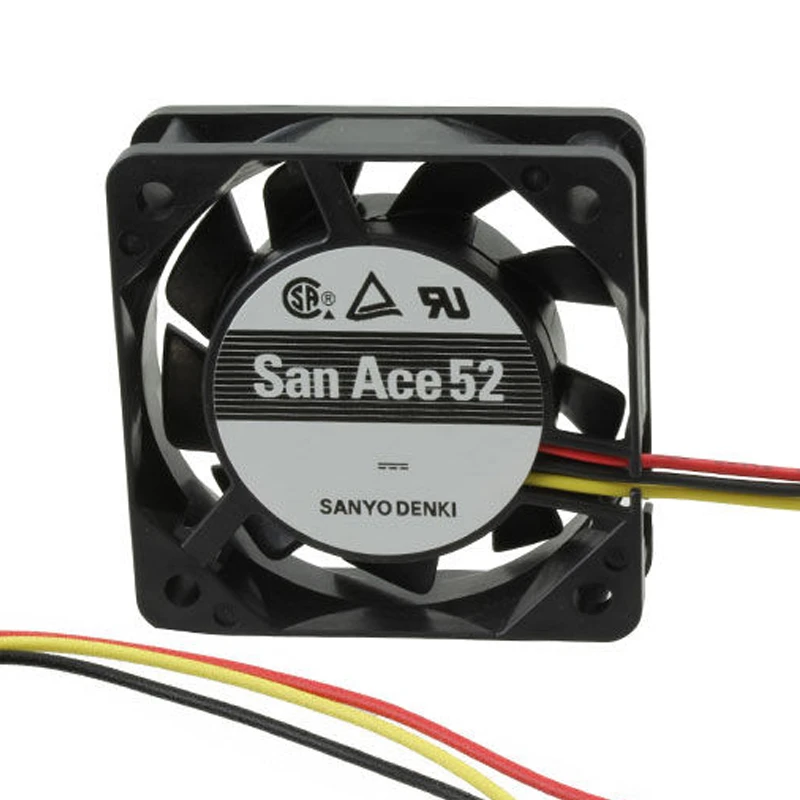

109P0524A701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0524A701 | Sanyo Denki 24VDC 2.64W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0524A701 combines a 52 × 52 × 15 mm DC axial fan platform with a 24 VDC rating for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 22.2 m³/h airflow figure supports its stated equipment-cooling role. Selection focus: wiring scheme review catalog specification.

Product Features

Rated Voltage(V)	24
Size(mm)	525215
Max.Air Flow(m³/h)	22.2
Max.Pressure(Pa)	69.7
Input Power(W)	2.64
Speed(rpm)	6800
Noise(db)	36

Product Features

Reliable Fan Cooling

109P0524A701 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

The rated peak airflow of 22.2 m3/h combines with 69.7 Pa pressure capability to support useful flow after installation losses are considered. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Assess vibration transfer into enclosure panels. This keeps sourcing decisions tied to validated system needs. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

For server chassis and computing nodes, 109P0524A701 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Storage Systems

SANYO DENKI 109P0524A701 serves storage arrays and data appliances that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

ICT Equipment

109P0524A701 is suitable for network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service. Selection should follow the approved full model code.

Frequently Asked Questions

What maintenance does 109P0524A701 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 109P0524A701 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 109P0524A701?

The worksheet lists 2.64 W. Check supply capacity and operating conditions before commissioning.

What speed is listed for 109P0524A701?

The listed speed is 6800 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109P0524A701?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.
