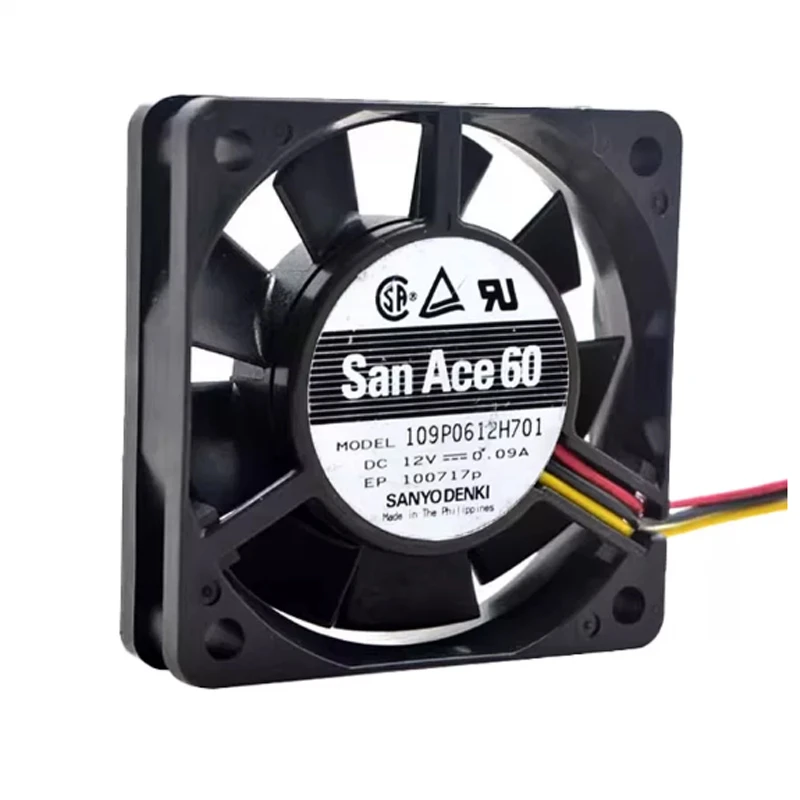

109P0612H701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0612H701 | Sanyo Denki 12VDC 1.08W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0612H701 combines a 60 × 60 × 15 mm DC axial fan platform with a 12 VDC rating for servers, UPS systems, and telecom equipment. The supplied reference emphasizes high static pressure and high airflow. A listed input of 1.08 W is the notable efficiency-related parameter. Selection focus: control interface planning frame geometry.

Product Features

Rated Voltage(V)	12
Size(mm)	606015
Max.Air Flow(m³/h)	23.7
Max.Pressure(Pa)	38.2
Input Power(W)	1.08
Speed(rpm)	4100
Noise(db)	32

Product Features

Stable San Ace Fan

The SANYO DENKI 109P0612H701 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

Its 23.7 m3/h maximum airflow supports rapid air exchange, while 38.2 Pa pressure capability helps overcome resistance within the finished equipment. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Review airflow direction before design release. This confirms cooling margin before volume production. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

SANYO DENKI 109P0612H701 serves server chassis and computing nodes that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Storage Systems

109P0612H701 is suitable for storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109P0612H701 supports thermal management in network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Frequently Asked Questions

Does 109P0612H701 have a pressure rating?

The worksheet lists 38.2 Pa. Use the official curve to match it to system resistance.

What certifications apply to 109P0612H701?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109P0612H701?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109P0612H701?

The worksheet lists 23.7 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 109P0612H701 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 109P0612H701?

The worksheet lists 32 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
