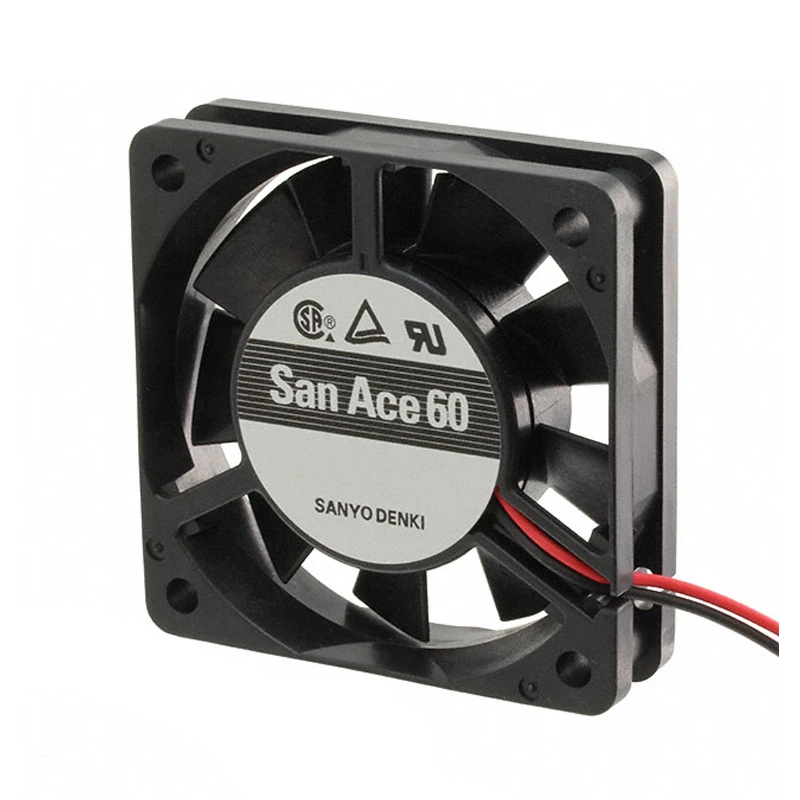

109P0612S702 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0612S702 | Sanyo Denki 12VDC 1.8W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For servers, UPS systems, and telecom equipment, 109P0612S702 combines 12 VDC operation with a 60 × 60 × 15 mm DC axial fan design. Series focus: high airflow and pressure. A listed input of 1.8 W is the notable efficiency-related parameter. Check duty point matching cooling output. Focus: duty point matching cooling output.

Product Features

Rated Voltage(V)	12
Size(mm)	606015
Max.Air Flow(m³/h)	28.6
Max.Pressure(Pa)	58.8
Input Power(W)	1.8
Speed(rpm)	5000
Noise(db)	36

Product Features

High Airflow Design

For servers, storage systems and ICT equipment, the SANYO DENKI 109P0612S702 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

With up to 28.6 m3/h airflow and 58.8 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Verify the mating connector and lead reach. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0612S702 supports thermal management in server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109P0612S702 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109P0612S702 serves network and other ICT hardware that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Frequently Asked Questions

Can 109P0612S702 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 109P0612S702 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 109P0612S702?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

How noisy is 109P0612S702?

The worksheet lists 36 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

Can 109P0612S702 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 109P0612S702 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.
