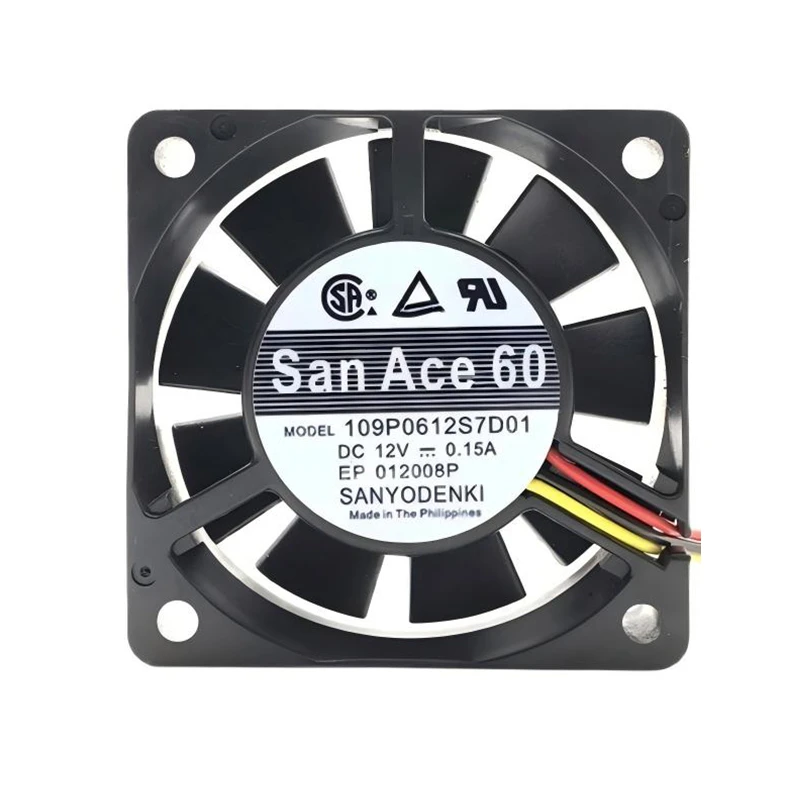

109P0612S7D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0612S7D01 | Sanyo Denki 12VDC 1.8W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0612S7D01 is a 12 VDC DC axial fan in a 60 × 60 × 15 mm format for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. A listed input of 1.8 W is the notable efficiency-related parameter. Check acoustic limit assessment mounting size. Focus: acoustic limit assessment.

Product Features

Rated Voltage(V)	12
Size(mm)	606015
Max.Air Flow(m³/h)	28.9
Max.Pressure(Pa)	58.8
Input Power(W)	1.8
Speed(rpm)	5000
Noise(db)	36

Product Features

High Airflow Design

109P0612S7D01 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

Its 28.9 m3/h maximum airflow supports rapid air exchange, while 58.8 Pa pressure capability helps overcome resistance within the finished equipment. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Review airflow direction before design release. This confirms cooling margin before volume production. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

SANYO DENKI 109P0612S7D01 serves server chassis and computing nodes that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Storage Systems

109P0612S7D01 is suitable for storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109P0612S7D01 supports thermal management in network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Frequently Asked Questions

How noisy is 109P0612S7D01?

The worksheet lists 36 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 109P0612S7D01 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

Is 109P0612S7D01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 109P0612S7D01?

Use rated voltage, 60 × 60 × 15 mm dimensions, 28.9 m³/h airflow, 5000 rpm, and 1.8 W input for preliminary comparison.

What certifications apply to 109P0612S7D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109P0612S7D01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.
