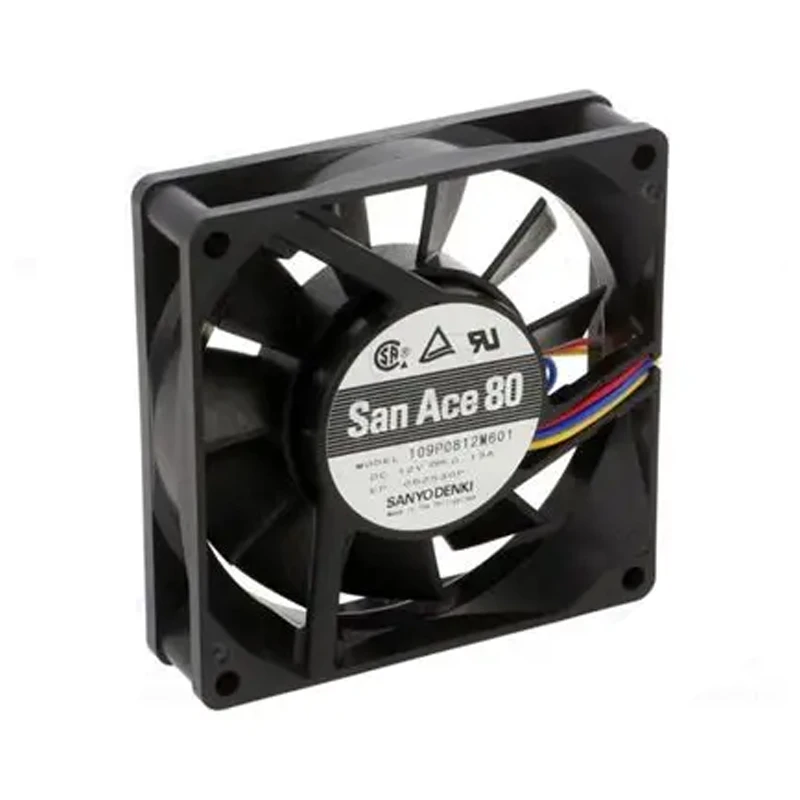

109P0812M601 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0812M601 | Sanyo Denki 12VDC 1.56W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 80 × 80 × 20 mm Sanyo Denki 109P0812M601 brings 12 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Use the documented ventilation capacity when planning compatibility checking. Validate mounting and wiring from the model drawing. Focus: compatibility risk checking.

Product Features

Rated Voltage(V)	12
Size(mm)	808020
Max.Air Flow(m³/h)	39.8
Max.Pressure(Pa)	18.6
Input Power(W)	1.56
Speed(rpm)	2300
Noise(db)	25

Product Features

High Airflow Design

The SANYO DENKI 109P0812M601 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 39.8 m3/h airflow and 18.6 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Check exhaust separation from the intake zone. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 109P0812M601 supports thermal management in server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109P0812M601 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109P0812M601 serves network and other ICT hardware that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Frequently Asked Questions

Does 109P0812M601 have a pressure rating?

The worksheet lists 18.6 Pa. Use the official curve to match it to system resistance.

What equipment is 109P0812M601 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109P0812M601 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 109P0812M601 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 109P0812M601?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

How noisy is 109P0812M601?

The worksheet lists 25 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
