EEC0381B1-000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: EEC0381B1-000U-A99 | SUNON 12V 10W 120x120x38mm 234.5m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Positioned for telecom cabinets, base stations, and network equipment, SUNON EEC0381B1-000U-A99 is a 12 VDC DC blower in a 120 × 120 × 38 mm frame. Up to 234.5 m³/h is its most prominent listed performance figure. Review its operating point during noise-control planning. Confirm environmental protection for the ordered version.

Datasheet:: EEC0381B1-000U-A99 | SUNON 12V 10W 120x120x38mm 234.5m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	120x120x38
Max.Air Flow(m³/h)	234.5
Max.Pressure(Pa)	89.7
Input Power(W)	10
Speed(rpm)	3100
Noise(db)	48

Product Features

High Airflow Cooling

The EEC0381B1-000U-A99 from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

With up to 234.5 m3/h listed airflow, the fan provides a measurable starting point for thermal design. Clear inlet space and a controlled outlet help preserve useful flow. A documented PWM input allows system demand to regulate speed, supporting part-load energy use and acoustic control.

For an orderly design-in process, assess vibration transfer around EEC0381B1-000U-A99 and perform prototype trials in equipment qualification. The result is a clearer cooling specification for engineering, purchasing and maintenance teams. Check how rotating forces couple into panels and sensitive assemblies.

Application Industry

Industrial Equipment

SUNON EEC0381B1-000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What noise data are available for EEC0381B1-000U-A99?

The worksheet lists 48 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What should be checked if EEC0381B1-000U-A99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to EEC0381B1-000U-A99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

What input power is listed for EEC0381B1-000U-A99?

The worksheet lists 10 W input. Check supply capacity and operating conditions before commissioning.

What certification information is listed for EEC0381B1-000U-A99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

Related Products

EEC0382B-1000U-A99 | SUNON 24V 9.2W 120x120x38mm 234.5m3/h DC Axial Fan for Industrial Cooling

Applied in telecom cabinets, base stations, and network equipment, SUNON EEC0382B-1000U-A99 is a 24 VDC DC blower in a 120 × 120 × 38 mm frame. Up to 234.5 m³/h is its most prominent listed performance figure. Treat the volume-flow figure as a primary input to noise-control planning. Confirm environmental protection for the ordered version.

EEC0382B1-000UA99 | SUNON 24V 9.2W 120x120x38mm 234.5m3/h DC Axial Fan for Industrial Cooling

EEC0382B1-000UA99 serves telecom cabinets, base stations, and network equipment as a 120 × 120 × 38 mm DC blower rated at 24 VDC. Up to 234.5 m³/h is its most prominent listed performance figure. The recorded electrical load should guide noise-control planning. Confirm environmental protection for the ordered version.

EEC0382B1-000U-A99 | SUNON 24V 9.2W 120x120x38mm 234.5m3/h DC Axial Fan for Industrial Cooling

Within telecom cabinets, base stations, and network equipment, SUNON EEC0382B1-000U-A99 serves as a 120 × 120 × 38 mm DC blower operating at 24 VDC. Up to 234.5 m³/h is its most prominent listed performance figure. Treat the equipment fit as a primary input to controller selection. Treat bearing and life data as suffix-specific.

EEC0384B3-000U-A99 | SUNON 48V 3.3W 120x120x38mm 158m3/h DC Axial Fan for Industrial Cooling

The EEC0384B3-000U-A99 is SUNON's 48 VDC, 120 × 120 × 38 mm DC axial fan option for telecom cabinets, base stations, and network equipment. Its 2100 rpm rating defines a lower-speed operating point. Use the documented ventilation capacity when planning noise-control planning. Confirm environmental protection for the ordered version.

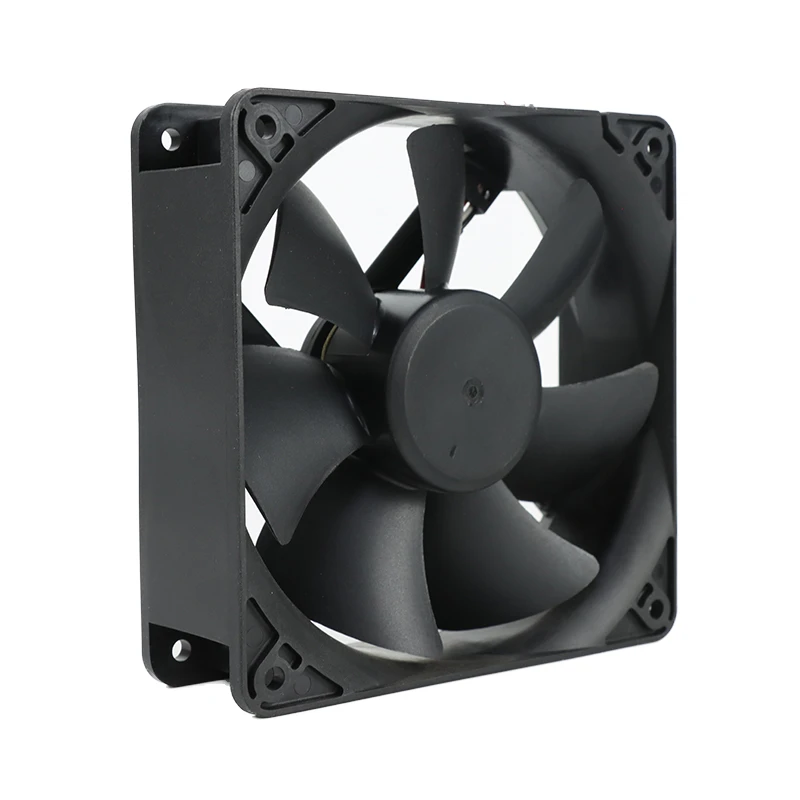

EEC0384B2-000U-A99 | SUNON 48V 5.8W 120x120x38mm 197.1m3/h DC Axial Fan for Industrial Cooling
