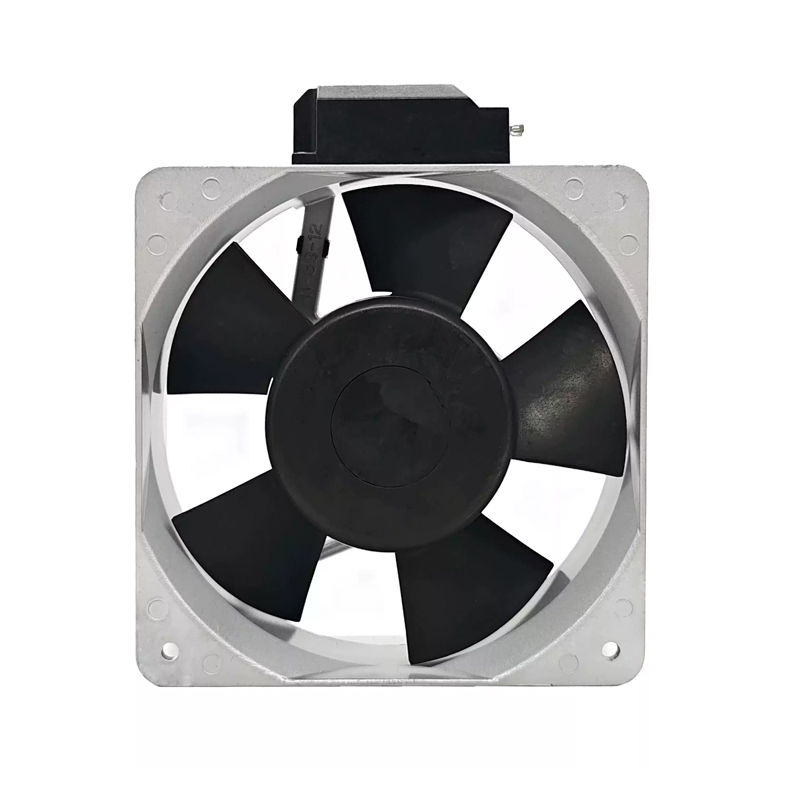

109-601 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109-601 | Sanyo Denki 100VAC 37.5W San Ace AC Axial Fan for industrial fan cooling systems

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The 160 × 160 × 51 mm Sanyo Denki 109-601 brings 100 VAC AC axial fan cooling to industrial equipment cooling. Series options require suffix verification. Review its rotational rating during replacement evaluation. Match the exact part number before approving a substitute. Focus: airflow path balancing acoustic value.

Datasheet:: 109-601 | Sanyo Denki 100VAC 37.5W San Ace AC Axial Fan for industrial fan cooling systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	100
Size(mm)	16016051
Max.Air Flow(m³/h)	432
Max.Pressure(Pa)	156.8
Input Power(W)	37.5
Speed(rpm)	2850
Noise(db)	56

Product Features

Reliable Fan Cooling

SANYO DENKI positions 109-601 as a AC axial fan for industrial machinery and electrical enclosures. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 432 m3/h and maximum pressure of 156.8 Pa give engineers a clear basis for matching the fan to enclosure resistance. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Measure installed sound in the final cabinet. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Industrial Equipment

109-601 is suitable for industrial machinery and embedded electronics. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Power Cabinets

The San Ace 109-601 supports thermal management in power distribution and electrical enclosures. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Frequently Asked Questions

Is 109-601 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109-601 be matched to an enclosure?

Check its 160 × 160 × 51 mm size, 432 m³/h airflow, 156.8 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109-601 suited to?

It is listed for industrial equipment cooling. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Which application details matter most for 109-601?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What maintenance does 109-601 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Related Products

109S051 | Sanyo Denki 200VAC 9/7W AC Axial Fan for automation and control cabinet cooling

The 109S051 is a Sanyo Denki 200 VAC, 80 × 80 × 25 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. For compatibility checking, start with the supplied pressure capability. Review connector, alarm, and sensor options separately. Focus: service access planning installation footprint.

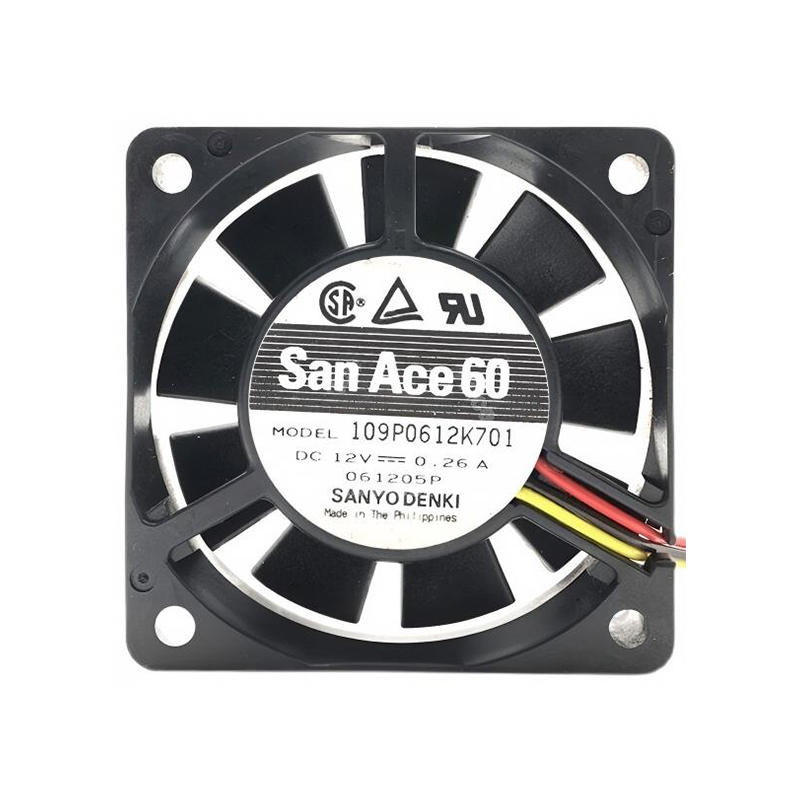

109P0612K701 | Sanyo Denki 12VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

For servers, UPS systems, and telecom equipment, 109P0612K701 combines 12 VDC operation with a 60 × 60 × 15 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The 36.8 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking airflow profile.

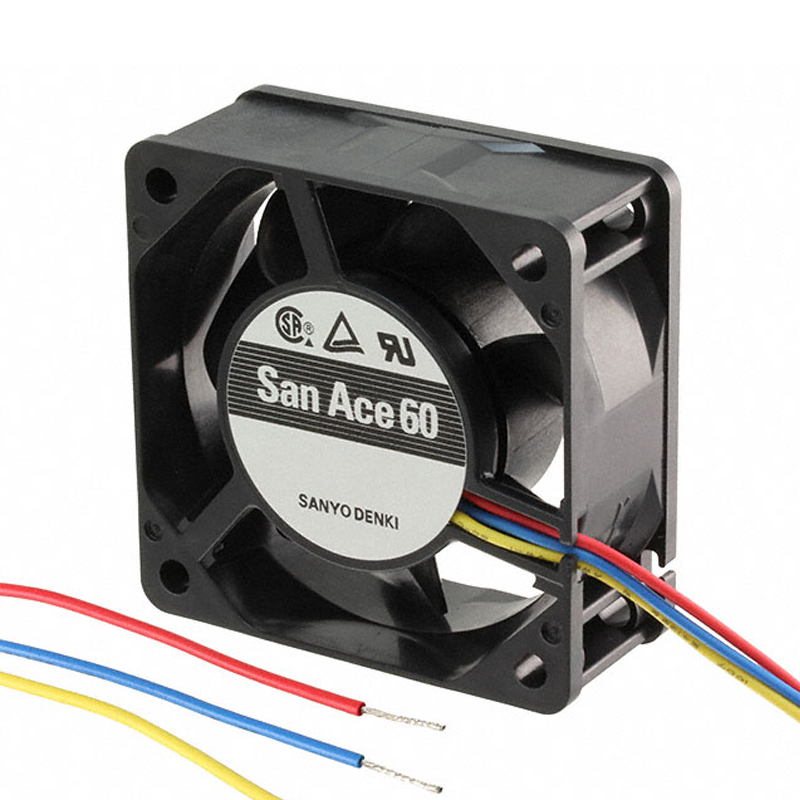

109R0605M401 | Sanyo Denki 5VDC DC Axial Fan for UPS, server and telecom equipment cooling

A 60 × 60 × 25 mm frame and 5 VDC rating define 109R0605M401, a DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. A listed noise figure of 20 dB is the key differentiating parameter. Check service access planning selection parameters. Focus: service access planning selection parameters.

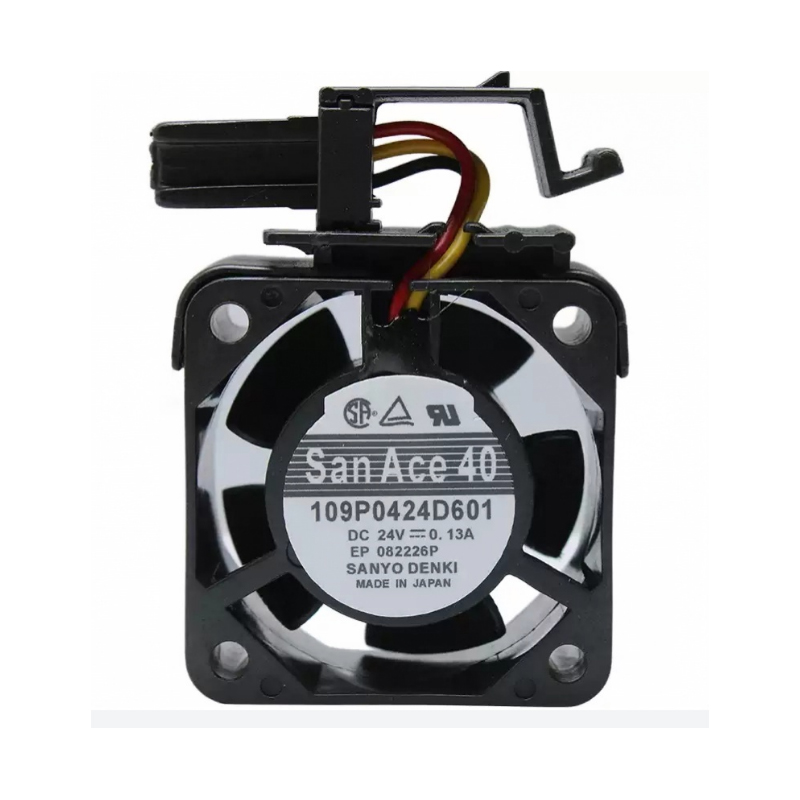

109P0424D601 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

109P0424D601 serves servers, UPS systems, and telecom equipment as a 40 × 40 × 20 mm DC axial fan rated at 24 VDC. Series focus: high airflow and pressure. The 40 × 40 × 20 mm format is the primary stated selection detail. Check acoustic limit assessment acoustic value. Focus: acoustic limit assessment acoustic value.

109-043UL | Sanyo Denki 115VAC 9W AC Axial Fan for automation and control cabinet cooling

The 109-043UL is a Sanyo Denki 115 VAC, 80 × 80 × 42 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. Review its mounting size during power-budget planning. Confirm control inputs against the complete ordering code. Focus: service access planning ventilation capacity.

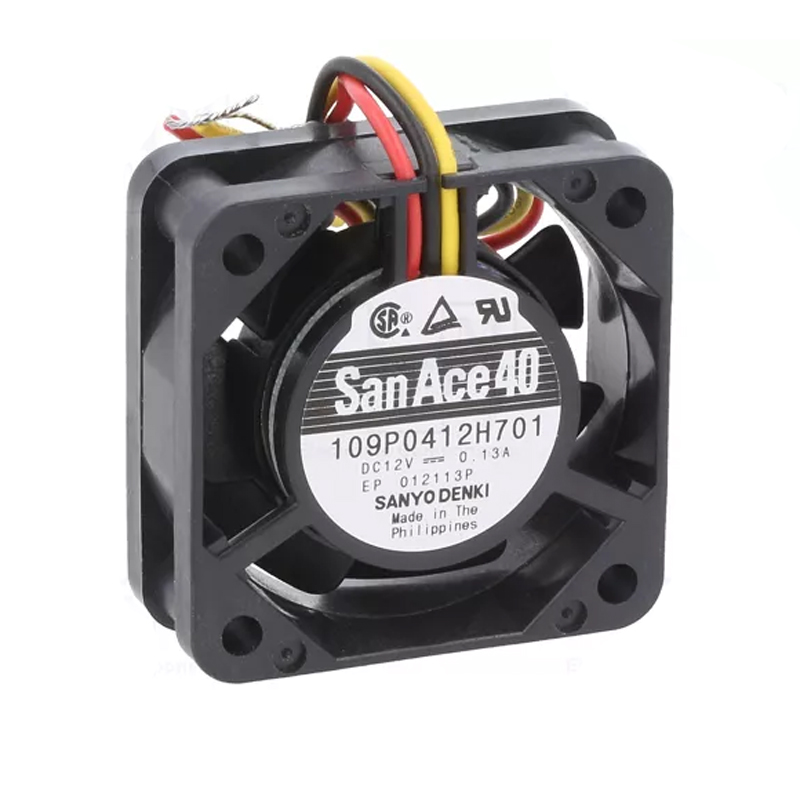

109P0412H701 | Sanyo Denki 12VDC 1.56W DC Axial Fan for UPS, server and telecom equipment cooling
