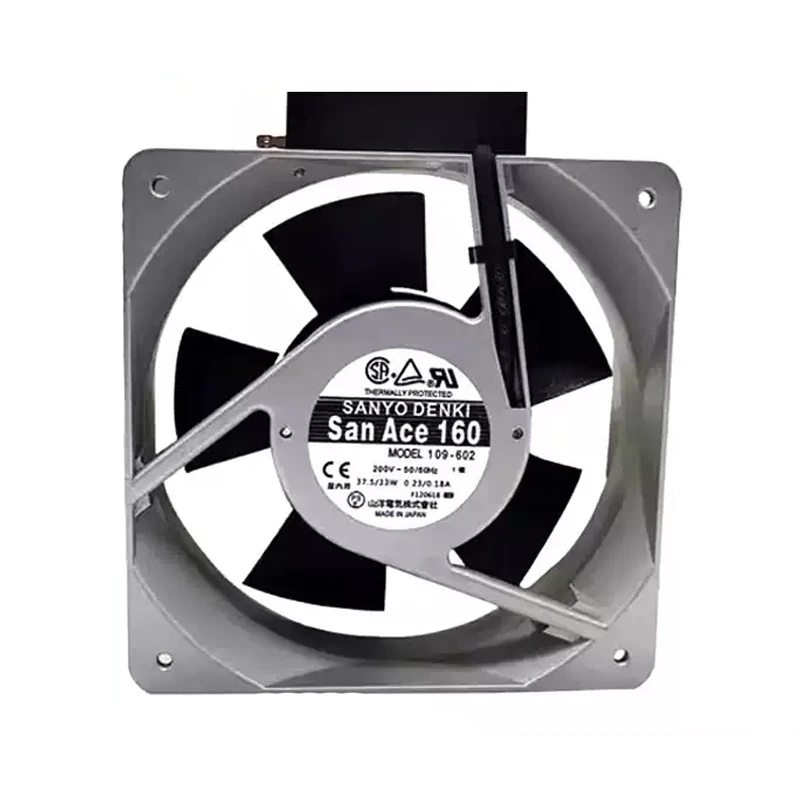

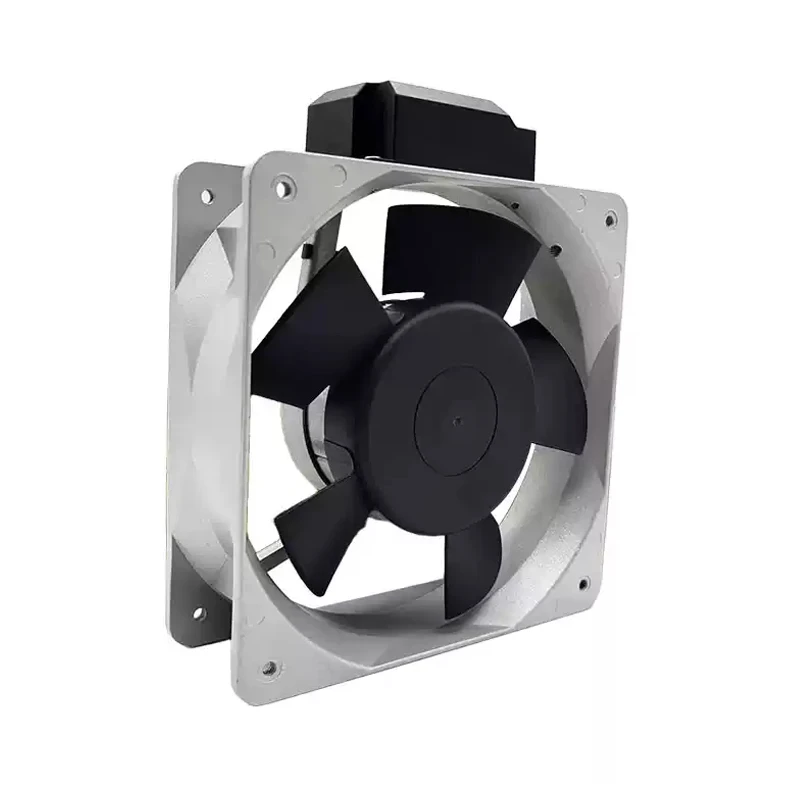

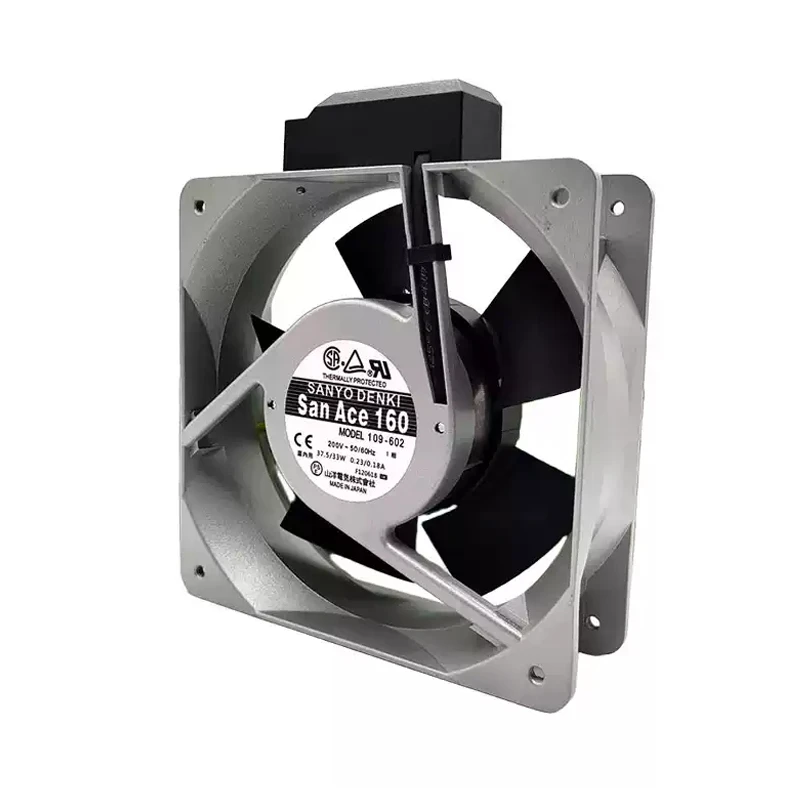

109-602 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109-602 | Sanyo Denki 200VAC 37.5W San Ace AC Axial Fan for industrial fan cooling systems

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The 160 × 160 × 51 mm Sanyo Denki 109-602 brings 200 VAC AC axial fan cooling to industrial equipment cooling. Series options require suffix verification. Base spares assessment on the stated cooling specification. Verify the exact bearing and signal options in the datasheet. Focus: enclosure space planning speed benchmark.

Datasheet:: 109-602 | Sanyo Denki 200VAC 37.5W San Ace AC Axial Fan for industrial fan cooling systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	200
Size(mm)	16016051
Max.Air Flow(m³/h)	432
Max.Pressure(Pa)	156.8
Input Power(W)	37.5
Speed(rpm)	2850
Noise(db)	56

Product Features

Stable San Ace Fan

The San Ace 109-602 serves industrial machinery and electrical enclosures as a AC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

With up to 432 m3/h airflow and 156.8 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. The motor, frame and impeller form a rigid airflow assembly that helps control vibration and preserve operating stability. Efficient air delivery reduces unnecessary cooling overhead. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Test component temperatures at peak load. This gives purchasing a controlled replacement reference.

Application Industry

Industrial Equipment

The San Ace 109-602 supports thermal management in industrial machinery and embedded electronics. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Power Cabinets

For power distribution and electrical enclosures, 109-602 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Frequently Asked Questions

Does 109-602 have a pressure rating?

The worksheet lists 156.8 Pa. Use the official curve to match it to system resistance.

What equipment is 109-602 suited to?

It is listed for industrial equipment cooling. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 109-602?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What maintenance does 109-602 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 109-602 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 109-602?

The worksheet lists 37.5 W. Check supply capacity and operating conditions before commissioning.

Related Products

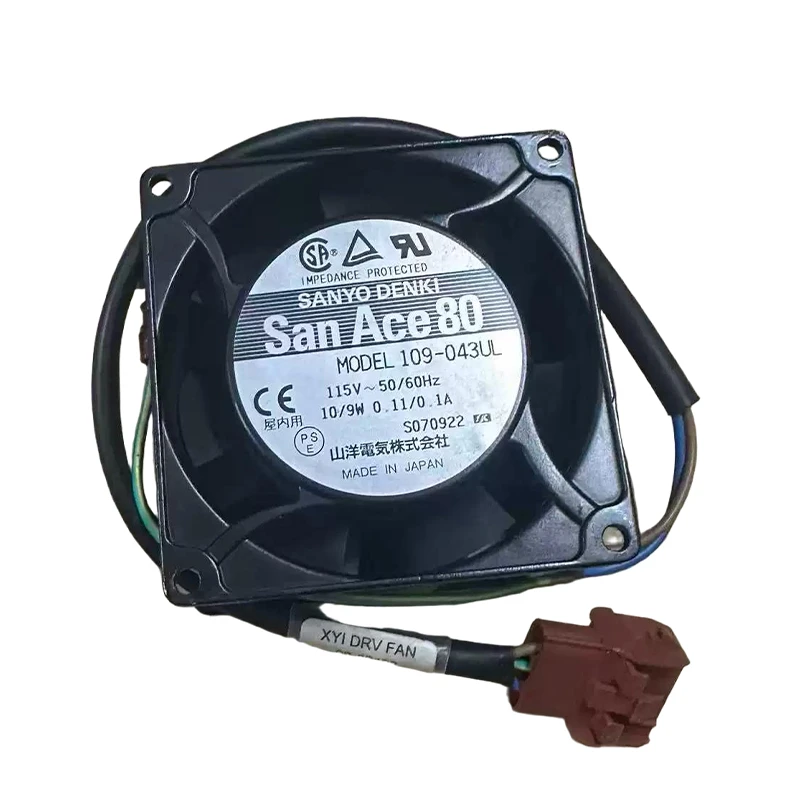

109-043UL | Sanyo Denki 115VAC 9W AC Axial Fan for automation and control cabinet cooling

The 109-043UL is a Sanyo Denki 115 VAC, 80 × 80 × 42 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. Review its mounting size during power-budget planning. Confirm control inputs against the complete ordering code. Focus: service access planning ventilation capacity.

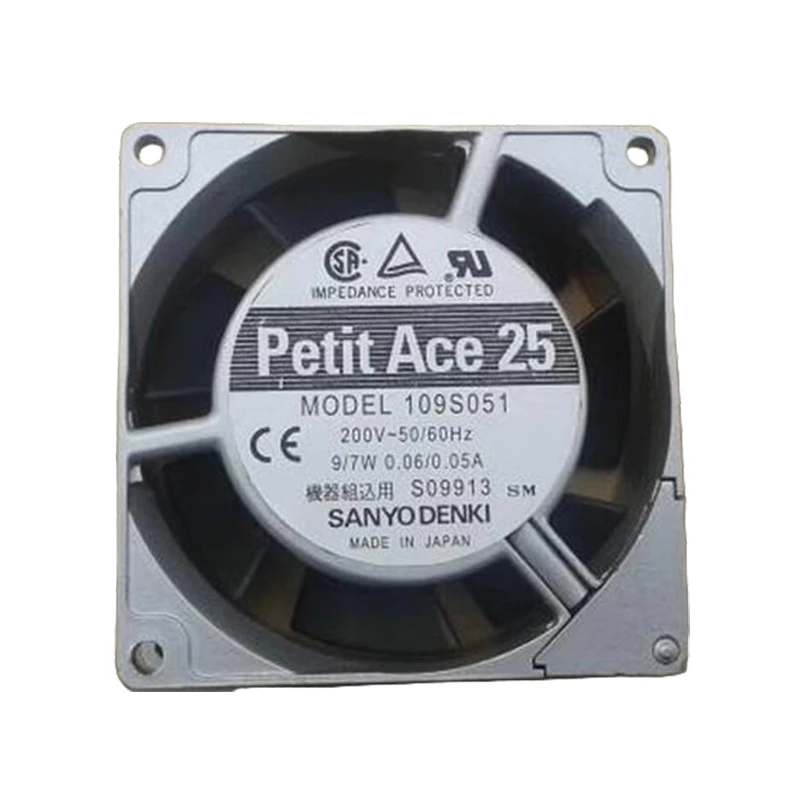

109S051 | Sanyo Denki 200VAC 9/7W AC Axial Fan for automation and control cabinet cooling

The 109S051 is a Sanyo Denki 200 VAC, 80 × 80 × 25 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. For compatibility checking, start with the supplied pressure capability. Review connector, alarm, and sensor options separately. Focus: service access planning installation footprint.

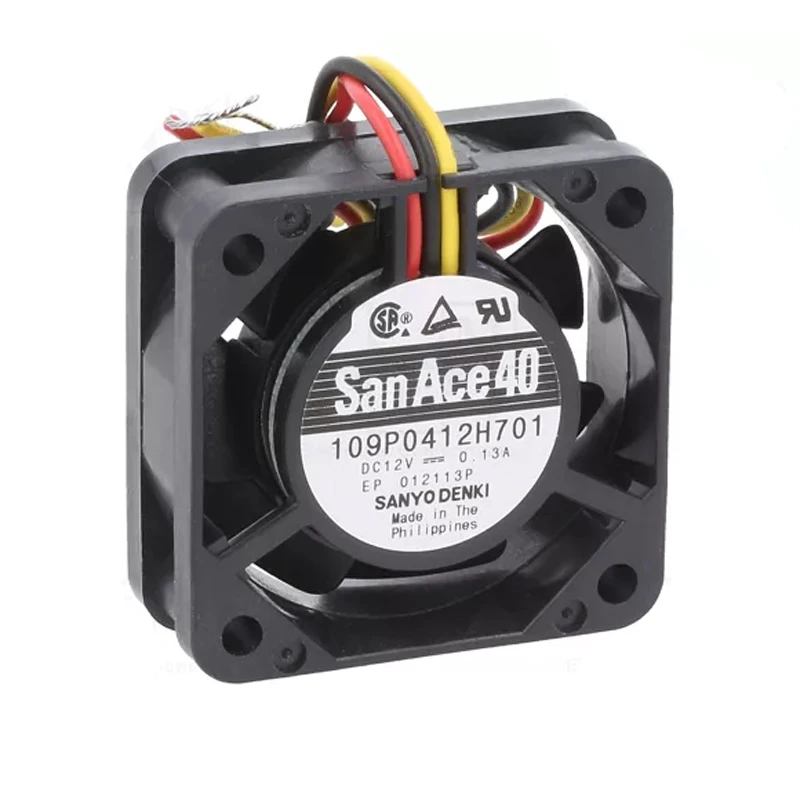

109P0412H701 | Sanyo Denki 12VDC 1.56W DC Axial Fan for UPS, server and telecom equipment cooling

109P0412H701 addresses servers, UPS systems, and telecom equipment through a 12 VDC DC axial fan platform measuring 40 × 40 × 15 mm. Series focus: high airflow and pressure. The 11 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking acoustic value. Focus: compatibility risk checking acoustic value.

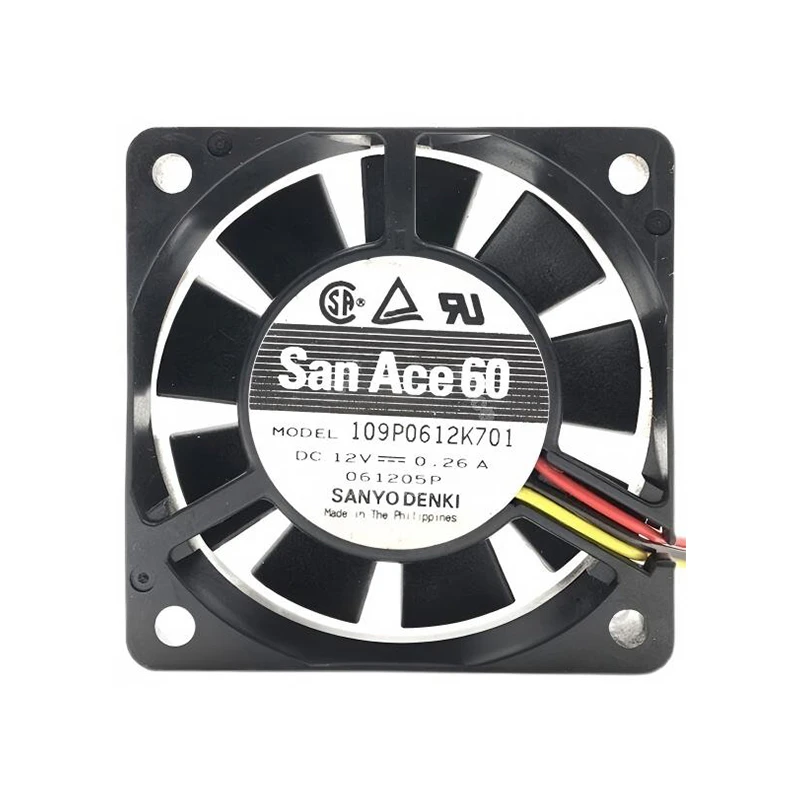

109P0612K701 | Sanyo Denki 12VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

For servers, UPS systems, and telecom equipment, 109P0612K701 combines 12 VDC operation with a 60 × 60 × 15 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The 36.8 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking airflow profile.

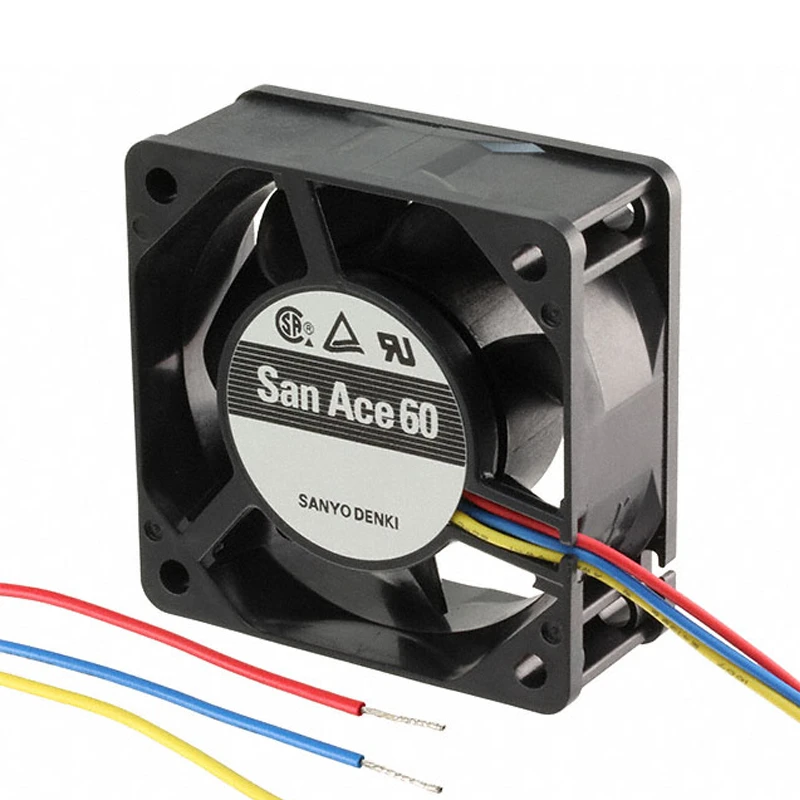

109R0605M401 | Sanyo Denki 5VDC DC Axial Fan for UPS, server and telecom equipment cooling

A 60 × 60 × 25 mm frame and 5 VDC rating define 109R0605M401, a DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. A listed noise figure of 20 dB is the key differentiating parameter. Check service access planning selection parameters. Focus: service access planning selection parameters.

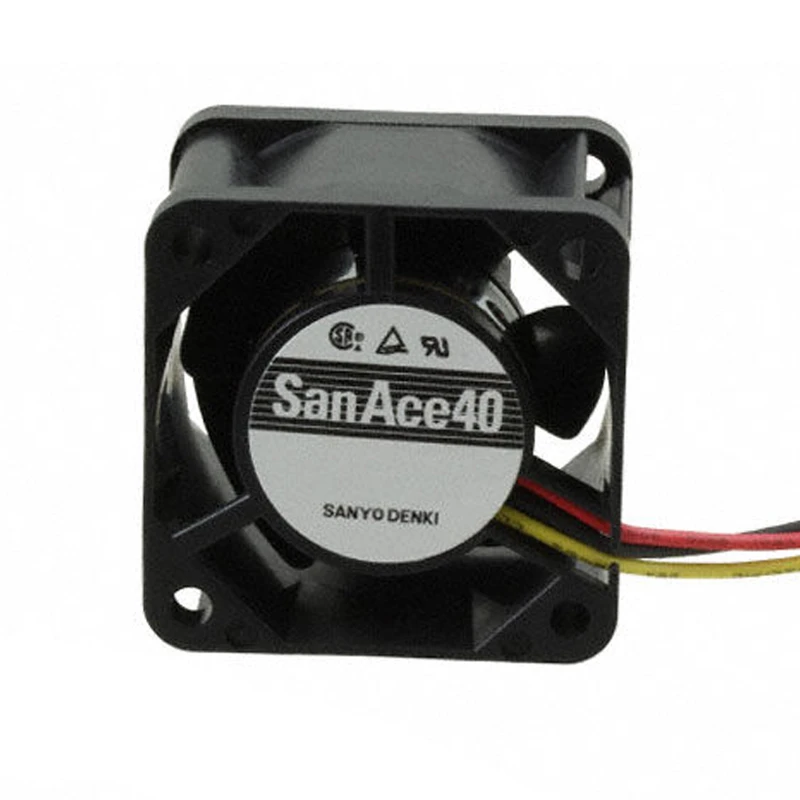

109P0412J301 | Sanyo Denki 12VDC DC Axial Fan for UPS, server and telecom equipment cooling
