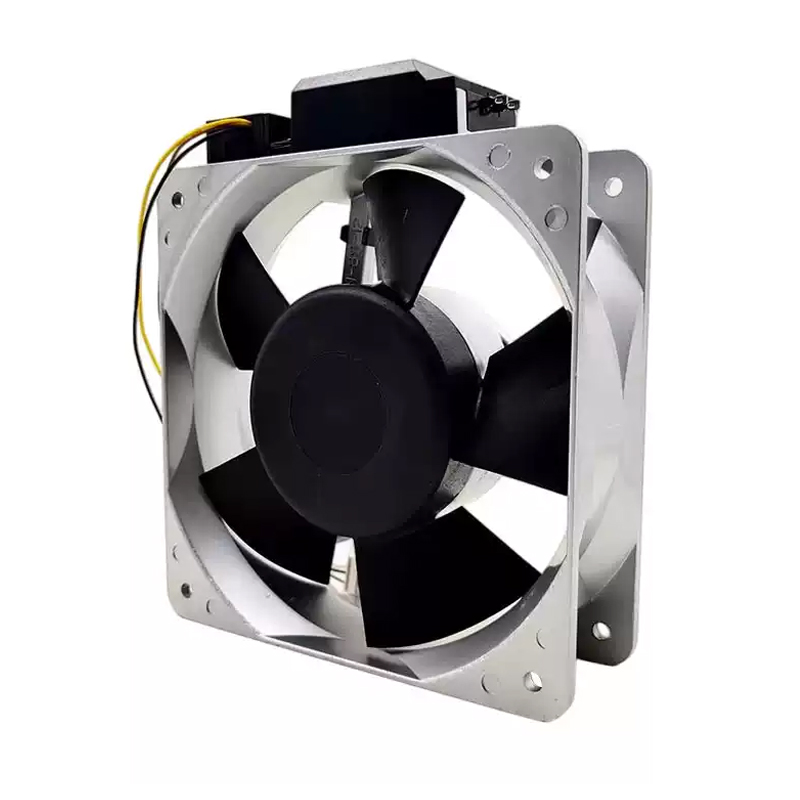

109-642 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109-642 | Sanyo Denki 200VAC 37.5/33W San Ace AC Axial Fan for industrial fan cooling systems

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Sanyo Denki configures 109-642 for industrial equipment cooling as a 200 VAC AC axial fan with 160 × 160 × 51 mm dimensions. Its listed airflow of 432/510 m³/h is the standout performance value. Use the documented equipment fit when planning fan selection. Treat bearing and life data as suffix-specific. Focus: replacement fit screening.

Datasheet:: 109-642 | Sanyo Denki 200VAC 37.5/33W San Ace AC Axial Fan for industrial fan cooling systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	200
Size(mm)	16016051
Max.Air Flow(m³/h)	432/510
Max.Pressure(Pa)	156.8/166.6
Input Power(W)	37.5/33
Speed(rpm)	2850/3350
Noise(db)	56/60

Product Features

Pressure Cooling

The SANYO DENKI 109-642 is a AC axial fan developed for industrial machinery and electrical enclosures. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

A listed maximum airflow of 432/510 m3/h and maximum pressure of 156.8/166.6 Pa give engineers a clear basis for matching the fan to enclosure resistance. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Verify mounting rigidity under continuous duty. It gives integrators a practical acceptance criterion. Confirm the final fan curve in the assembled equipment.

Application Industry

Industrial Equipment

109-642 is suitable for industrial machinery and embedded electronics. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration. Verified.

Power Cabinets

The San Ace 109-642 supports thermal management in power distribution and electrical enclosures. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Can 109-642 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 109-642?

The worksheet lists 37.5/33 W. Check supply capacity and operating conditions before commissioning.

What speed is listed for 109-642?

The listed speed is 2850/3350 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109-642?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 109-642 have a pressure rating?

The worksheet lists 156.8/166.6 Pa. Use the official curve to match it to system resistance.

Related Products

109-043UL | Sanyo Denki 115VAC 9W AC Axial Fan for automation and control cabinet cooling

The 109-043UL is a Sanyo Denki 115 VAC, 80 × 80 × 42 mm AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. Review its mounting size during power-budget planning. Confirm control inputs against the complete ordering code. Focus: service access planning ventilation capacity.

109P0412H701 | Sanyo Denki 12VDC 1.56W DC Axial Fan for UPS, server and telecom equipment cooling

109P0412H701 addresses servers, UPS systems, and telecom equipment through a 12 VDC DC axial fan platform measuring 40 × 40 × 15 mm. Series focus: high airflow and pressure. The 11 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking acoustic value. Focus: compatibility risk checking acoustic value.

109P0612K701 | Sanyo Denki 12VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

For servers, UPS systems, and telecom equipment, 109P0612K701 combines 12 VDC operation with a 60 × 60 × 15 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The 36.8 m³/h airflow figure supports its stated equipment-cooling role. Check compatibility risk checking airflow profile.

109R0605M401 | Sanyo Denki 5VDC DC Axial Fan for UPS, server and telecom equipment cooling

A 60 × 60 × 25 mm frame and 5 VDC rating define 109R0605M401, a DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. A listed noise figure of 20 dB is the key differentiating parameter. Check service access planning selection parameters. Focus: service access planning selection parameters.

109P0412J301 | Sanyo Denki 12VDC DC Axial Fan for UPS, server and telecom equipment cooling

109P0412J301 addresses servers, UPS systems, and telecom equipment through a 12 VDC DC axial fan platform measuring 40 × 40 × 28 mm. Series focus: high airflow and pressure. 12500 rpm is the model's most prominent operating value. Check acoustic limit assessment rotational rating. Focus: acoustic limit assessment rotational rating.

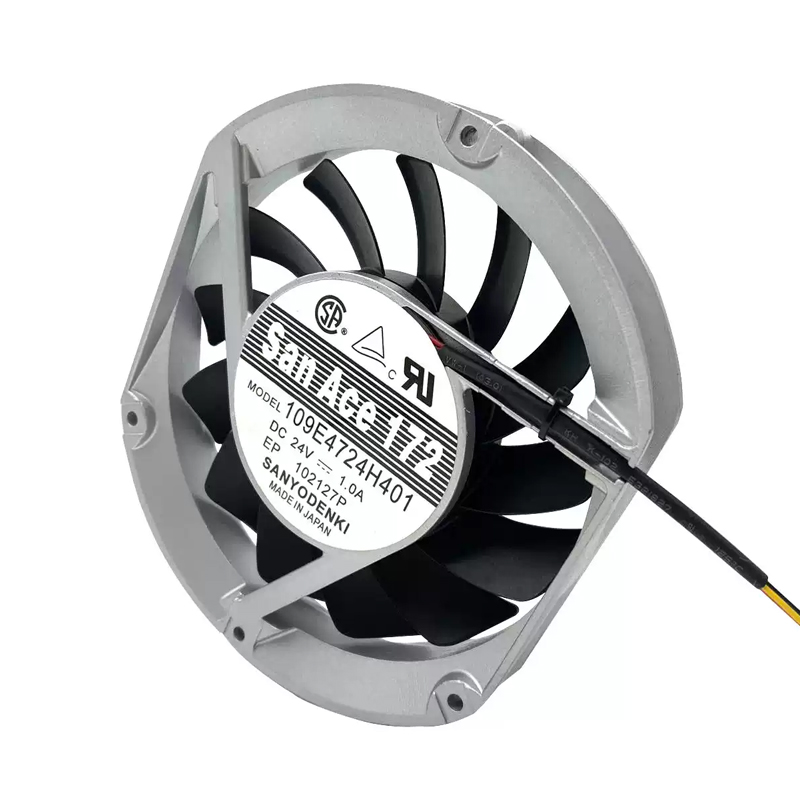

109E4724H401 | Sanyo Denki 24VDC 24W DC Axial Fan for UPS, server and telecom equipment cooling
