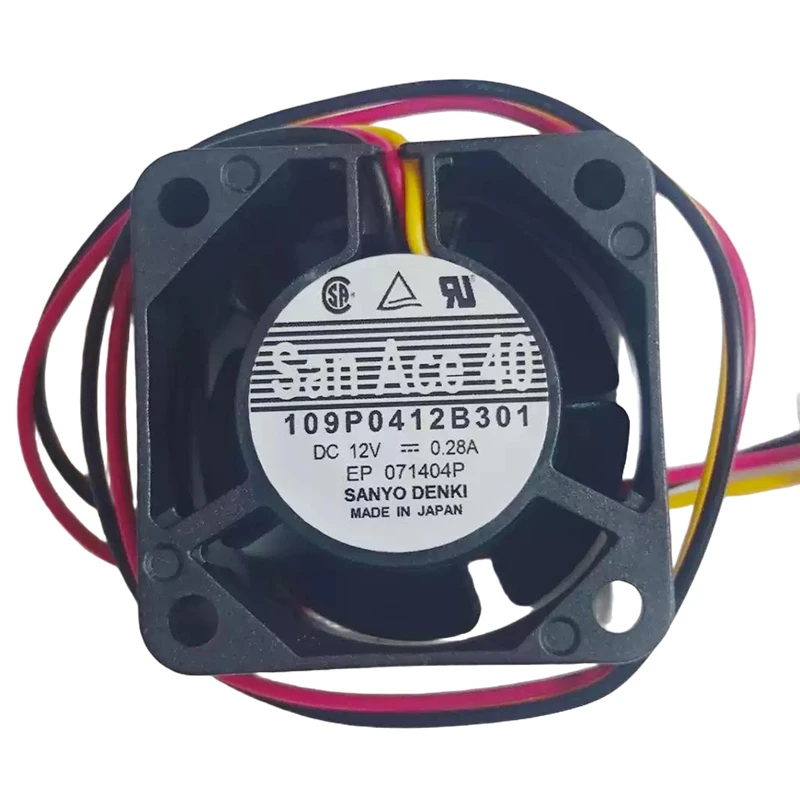

109P0412B301 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0412B301 | Sanyo Denki 12VDC 3.36W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For thermal management in servers, UPS systems, and telecom equipment, the 109P0412B301 provides a 12 VDC DC axial fan configuration measuring 40 × 40 × 28 mm. 10300 rpm is the model's most prominent operating value. Use the documented cooling output when planning controller selection. Treat bearing and life data as suffix-specific.

Datasheet:: 109P0412B301 | Sanyo Denki 12VDC 3.36W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404028
Input Power(W)	3.36
Speed(rpm)	10300
Noise(db)	40

Product Features

Reliable Fan Cooling

The San Ace 109P0412B301 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Confirm the operating environment for the suffix. The outcome supports dependable long-term equipment service. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109P0412B301 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

Storage Systems

The San Ace 109P0412B301 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

ICT Equipment

For network and other ICT hardware, 109P0412B301 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Frequently Asked Questions

What is the lead time for 109P0412B301?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 109P0412B301 require?

The worksheet lists 12 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What speed is listed for 109P0412B301?

The listed speed is 10300 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109P0412B301?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 109P0412B301 be matched to an enclosure?

Check its 40 × 40 × 28 mm size, mounting points, airflow direction, and system resistance.
