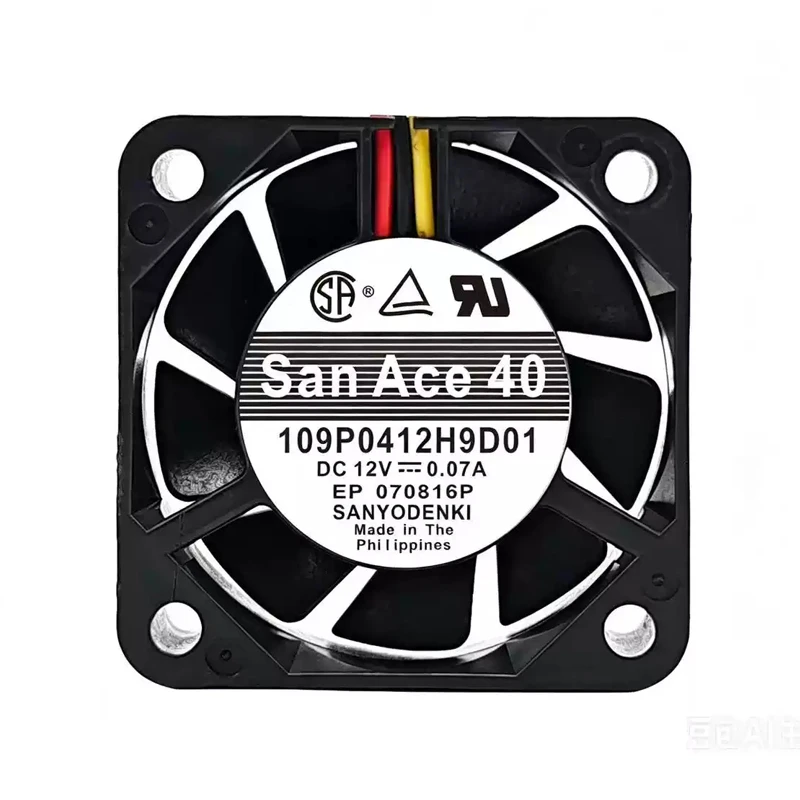

109P0412H9D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0412H9D01 | Sanyo Denki 12VDC 0.84W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109P0412H9D01 is a 12 VDC DC axial fan in a 40 × 40 × 10 mm format for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. The 9 m³/h airflow figure supports its stated equipment-cooling role. Check wiring scheme review thermal-duty record. Focus: wiring scheme review thermal-duty record.

Datasheet:: 109P0412H9D01 | Sanyo Denki 12VDC 0.84W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404010
Max.Air Flow(m³/h)	9
Max.Pressure(Pa)	41.2
Input Power(W)	0.84
Speed(rpm)	6200
Noise(db)	25

Product Features

Efficient Cooling

The SANYO DENKI 109P0412H9D01 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 9 m3/h airflow and 41.2 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Map airflow around the hottest components. This confirms cooling margin before volume production. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0412H9D01 supports thermal management in server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Storage Systems

For storage arrays and data appliances, 109P0412H9D01 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

ICT Equipment

SANYO DENKI 109P0412H9D01 serves network and other ICT hardware that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

What should be checked if 109P0412H9D01 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109P0412H9D01 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 109P0412H9D01?

Use rated voltage, 40 × 40 × 10 mm dimensions, 9 m³/h airflow, 6200 rpm, and 0.84 W input for preliminary comparison.

What equipment is 109P0412H9D01 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109P0412H9D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 109P0412H9D01 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.
