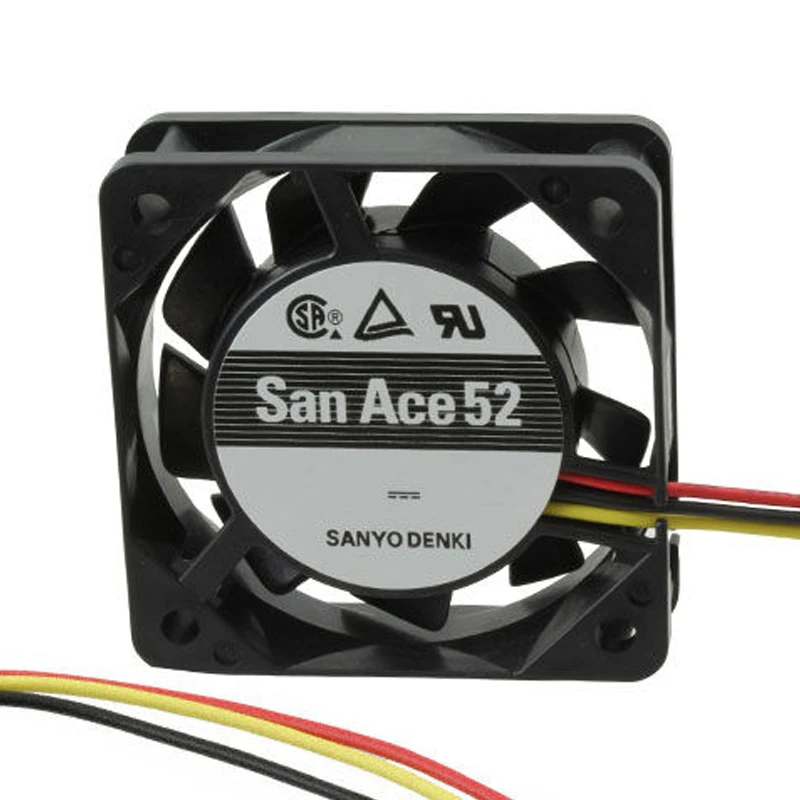

109P0512A701 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109P0512A701 | Sanyo Denki 12VDC 2.52W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109P0512A701 is a Sanyo Denki 12 VDC, 52 × 52 × 15 mm DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. For enclosure sizing, start with the supplied duty-point values. Confirm environmental protection for the ordered version. Focus: cabinet ventilation planning static-pressure entry.

Product Features

Rated Voltage(V)	12
Size(mm)	525215
Max.Air Flow(m³/h)	22.2
Max.Pressure(Pa)	69.7
Input Power(W)	2.52
Speed(rpm)	6800
Noise(db)	36

Product Features

Efficient Cooling

The San Ace 109P0512A701 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

With up to 22.2 m3/h airflow and 69.7 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Review grille loss at the required duty point. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109P0512A701 supports thermal management in server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109P0512A701 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109P0512A701 serves network and other ICT hardware that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Frequently Asked Questions

Which specifications define 109P0512A701?

Use rated voltage, 52 × 52 × 15 mm dimensions, 22.2 m³/h airflow, 6800 rpm, and 2.52 W input for preliminary comparison.

What certifications apply to 109P0512A701?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109P0512A701 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 109P0512A701 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 109P0512A701?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What input power is listed for 109P0512A701?

The worksheet lists 2.52 W. Check supply capacity and operating conditions before commissioning.
