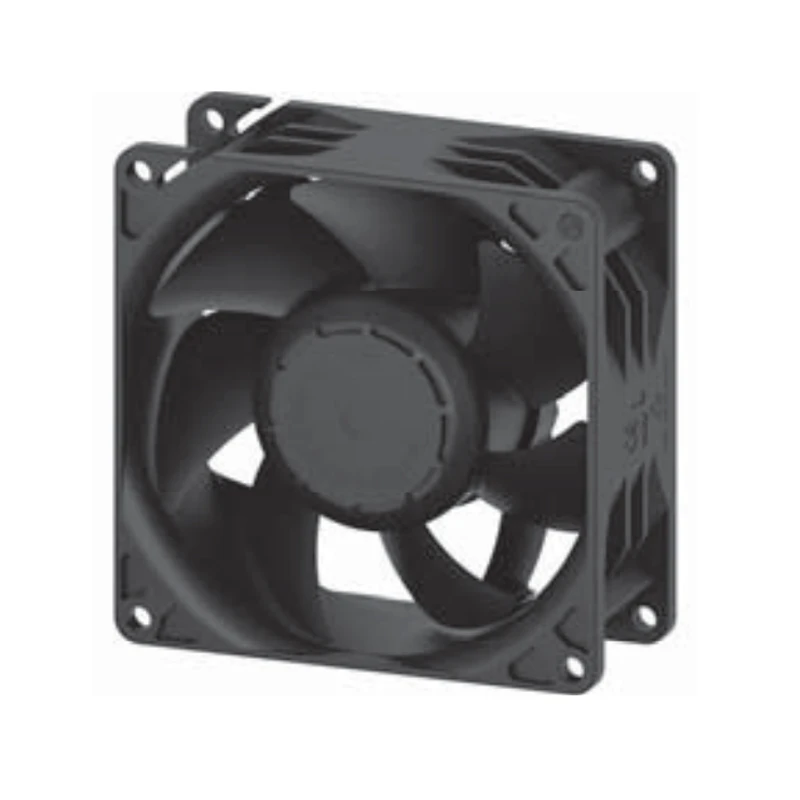

GF92382BX-10000-ADP SUNON Axial Fan

Brand :: SUNON

Model:: GF92382BX-10000-ADP | SUNON 24V 40.8W 92x92x38mm 293.8m3/h 9000rpm DC Axial Fan for New Energy

Type:: Axial Fans

Industry:: New Energy

Description:: The GF92382BX-10000-ADP is SUNON's 24 VDC, 92 × 92 × 38 mm DC axial fan option for inverters, energy-storage systems, and charging equipment. Up to 293.8 m³/h is its most prominent listed performance figure. Review its selection parameters during spares assessment. Confirm control inputs against the complete ordering code.

Datasheet:: GF92382BX-10000-ADP | SUNON 24V 40.8W 92x92x38mm 293.8m3/h 9000rpm DC Axial Fan for New Energy Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	293.8
Max.Pressure(Pa)	430.9
Input Power(W)	40.8
Speed(rpm)	9000
Noise(db)	66.8

Product Features

High Airflow Cooling

For new-energy power equipment, SUNON GF92382BX-10000-ADP serves as a DC brushless axial fan. The fan supports temperature control in equipment that runs through sustained or repeated duty cycles.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Correct airflow direction and inlet clearance help translate the documented operating point into reliable equipment-level cooling.

Before adopting GF92382BX-10000-ADP, engineers should evaluate mounting rigidity. Carry out power-budget review during sourcing review so the chosen fan can be released with clear installation and sourcing requirements. Confirm startup and steady-state demand against the available supply.

Application Industry

Energy Storage

SUNON GF92382BX-10000-ADP serves energy-storage systems. Airflow around battery-control and power-conversion assemblies helps address charging and discharging losses. The fan gives OEM equipment a defined air route and supports stable ESS operation. It supports reliable equipment cooling.

PV Inverters

SUNON GF92382BX-10000-ADP serves photovoltaic inverters. Airflow around switching devices and control electronics helps address solar power-conversion heat. The fan gives OEM equipment a defined air route and supports dependable inverter duty. It supports reliable equipment cooling.

EV Charging

SUNON GF92382BX-10000-ADP serves electric-vehicle charging equipment. Airflow around power modules and control assemblies helps address high charging loads. The fan gives OEM equipment a defined air route and supports reliable charging operation. It supports reliable equipment cooling.

Frequently Asked Questions

Is GF92382BX-10000-ADP suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

Does GF92382BX-10000-ADP have a documented pressure rating?

Yes. The worksheet lists up to 430.9 Pa; compare it with the system curve.

Which performance figures define GF92382BX-10000-ADP?

Use the listed voltage, size, 293.8 m³/h airflow, 9000 rpm, and 40.8 W input for preliminary comparison.

What certification information is listed for GF92382BX-10000-ADP?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

What protection rating does GF92382BX-10000-ADP have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

Does GF92382BX-10000-ADP support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.
